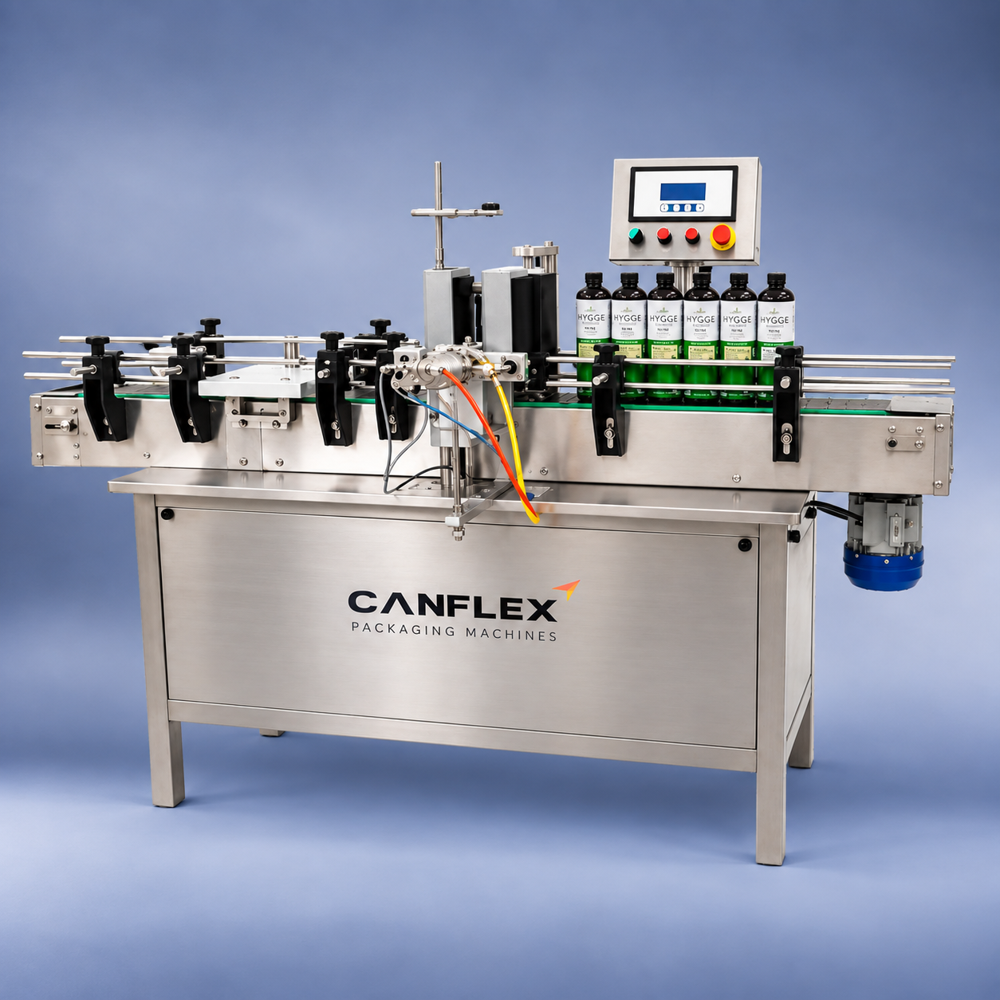

Sticker labelling machine for round bottle (pneumatic)

Sticker labelling machine for round bottle (pneumatic)

448000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type Bottle/container sticker labelling machine
Material Stainless steel
Application Food, Chemical, Medical, Beverage
Packaging Material Plastic, Glass, Metal
Computerized Yes
Automatic Grade Automatic
Drive Type Other
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Sticker labelling machine for round bottle (pneumatic) Price And Quantity

Minimum Order Quantity 1 Number
Price 448000.0 INR/Unit

Sticker labelling machine for round bottle (pneumatic) Product Specifications

Voltage 415 kilovolt (kV)
Computerized Yes
Drive Type Other
Application Food, Chemical, Medical, Beverage
Feature Stable Performance, Simple Control, High Performance, High Efficiency
Automatic Grade Automatic
Capacity 40 Pcs/min
Color Silver
Material Stainless steel
Weight (kg) 350 Kilograms (kg)
Dimension (L*W*H) 1500 610 1200 Millimeter (mm)
Warranty 1 year
Product Type Bottle/container sticker labelling machine
Packaging Material Plastic, Glass, Metal

Sticker labelling machine for round bottle (pneumatic) Trade Information

FOB Port Telangana, India
Supply Ability 10 Number Per Month
Delivery Time 30 Days
Main Export Market(s) Africa, Asia, Middle East
Main Domestic Market All India
Certifications Trade marked, ISO certififed, Member of Federation of Indian Export Organisation

Product Description

The Automatic Vertical Sticker Labelling Machine provides efficient, accurate, and user-friendly labelling for round containers. Designed for full or partial wrap-around labelling, it accommodates different container sizes. Its automatic roller spacing device eliminates change parts, simplifying operation. The machine delivers 3040 labels per minute for containers up to 240 mm and 1215 for those up to 325 mm.

Pan-India & international service and spares, customisation available.

Applications: Automatic round container sticker labelling machine

Features: Full & Partial Wrap-Around Labelling No Change Parts Required Flexible Container Capacity

Technical Specification	Details
Machine Type	Automatic Labelling Machine
Output Labels up to 240 mm	3040 BPM
Output Labels up to 325 mm	1215 BPM
Direction of Movement	Left to Right
Controller	Microcontroller-Based PLC
Labelling Operation	Pneumatic Roller
Conveyor Motor	0.25 HP / 415 V / 50 Hz
Pressing Device Motor	0.25 HP / 415 V / 50 Hz
Stepper Motor	60 kg/cm
Label Accuracy	1 mm
Conveyor Height	850900 mm Adjustable
Machine Dimensions (L W H)	Approx. 1500 610 1200 mm
Net Weight	Approx. 350 kg

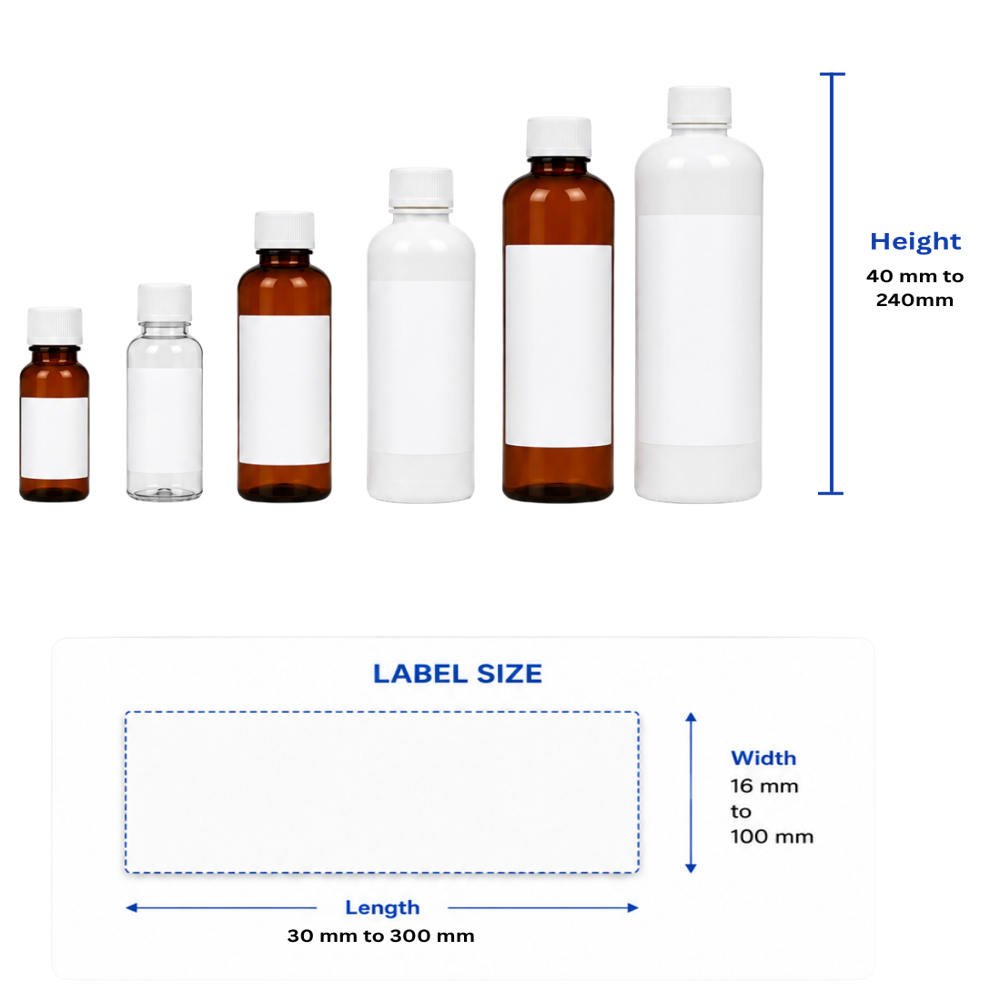

Label Length	30300 mm
Label Width	16100 mm
Label Roll Diameter	Maximum 300 mm
Label Roll Core ID	75 mm
Minimum Space Between Labels	3 mm
Label Roll Direction	Clockwise
Round Container Diameter	22100 mm
Round Container Height	40240 mm
Other Container Heights	Available with suitable configuration
Groove Bottle	Requires Change Parts
Machine Structure	SS Structure Cladded with SS 304 Sheet
GMP Compliance	Designed to Meet GMP Norms
Control System	Microprocessor-Based Operation
Label Placement	Accurate Label Placement
Change Parts	Not Required for Standard Applications
Changeover	Very Low Downtime
Container Compatibility	Glass, Plastic, PET, Tin & Corrugated Containers
Electrical Supply Requirement	1 Phase + Neutral + Earthing
Electrical Load	1 kW
Compressed Air Requirement	6 kg/cm
Output Disclaimer	Output depends on container size, fill size, neck diameter and nature of product
Customization	Equipment can be supplied as per customer requirements
Change Parts Note	Groove bottles require applicable change parts

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Bottle Filling Machine' category

Automatic bottle filling machine (6 head) Price : 1300000.0 INR/Number Minimum Order Quantity : 1 Drive Type : Other Computerized : Yes Feature : High Efficiency, Stable Performance, Simple Control Application : Chemical, Medical, Beverage Automatic Grade : Automatic Capacity : 1224 Pcs/min Color : Silver Material : SS304 Warranty : 1 YEAR Product Type : Bottle/container filling machine Voltage : 415 Volt (v) Weight (kg) : 500 Kilograms (kg) Dimension (L*W*H) : 8 ft length x 5 ft width x 6 ft height Foot (ft) Packaging Material : Plastic, Glass, Metal Control System : PLC Control

Send Inquiry

Automatic bottle filling machine with servo (4 head) Price : 1100000.0 INR/Number Minimum Order Quantity : 1 Drive Type : Other Computerized : Yes Feature : High Efficiency, Stable Performance, Simple Control Application : Beverage, Chemical, Food, Medical Automatic Grade : Automatic Capacity : 850 Pcs/min Color : Silver Material : SS304 Warranty : 1 YEAR Product Type : Bottle/container filling machine Voltage : 415 Volt (v) Weight (kg) : 500 Kilograms (kg) Dimension (L*W*H) : 8 ft L x 5 ft W x 6 ft H Foot (ft) Packaging Material : Metal, Plastic, Glass Control System : PLC Control

Send Inquiry

Bottle filling machine volumetric (4 head) Price : 462000.0 INR/Number Minimum Order Quantity : 1 Drive Type : Other Computerized : Yes Feature : High Efficiency, Stable Performance, Simple Control Application : Medical, Beverage, Chemical Automatic Grade : Automatic Capacity : 1840 Pcs/min Color : Silver Material : SS304 Warranty : 1 YEAR Product Type : Bottle/container filling machine Voltage : 1 kilovolt (kV) Weight (kg) : 450 Kilograms (kg) Dimension (L*W*H) : 1800 mm (L) x 950 mm (W) x 1800 (H) Millimeter (mm) Packaging Material : Plastic, Glass, Metal Control System : PLC Control

Send Inquiry

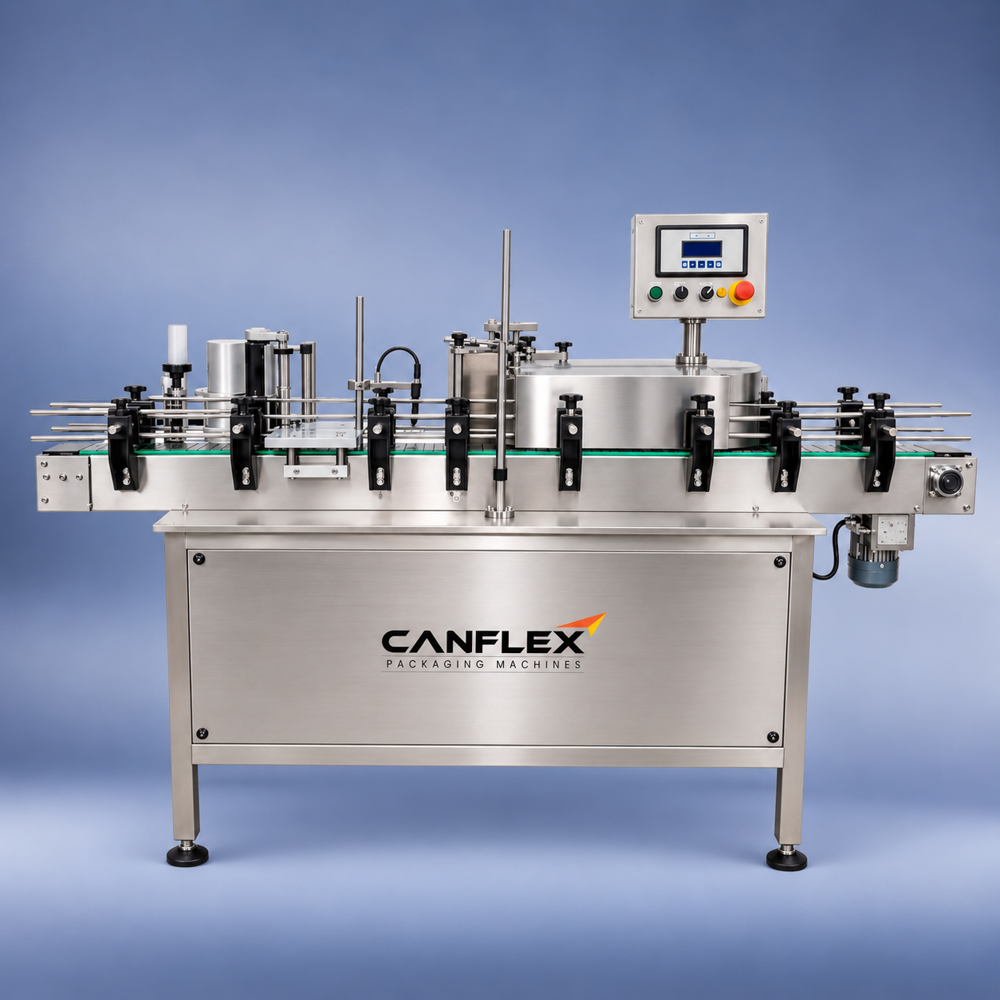

Sticker labelling machine for round bottles (with servo) Price : 490000.0 INR/Unit Minimum Order Quantity : 1 Drive Type : Other Computerized : Yes Feature : High Performance, High Efficiency, Stable Performance, Simple Control Application : Chemical, Medical, Beverage Automatic Grade : Automatic Capacity : 60 Pcs/min Color : Silver Material : Stainless steel Warranty : 1 year Product Type : Bottle/container sticker labelling machine Voltage : 1 kilovolt (kV) Weight (kg) : 350 Kilograms (kg) Dimension (L*W*H) : 1828 610 1200 Millimeter (mm) Packaging Material : Paper, Plastic, Glass, Metal
