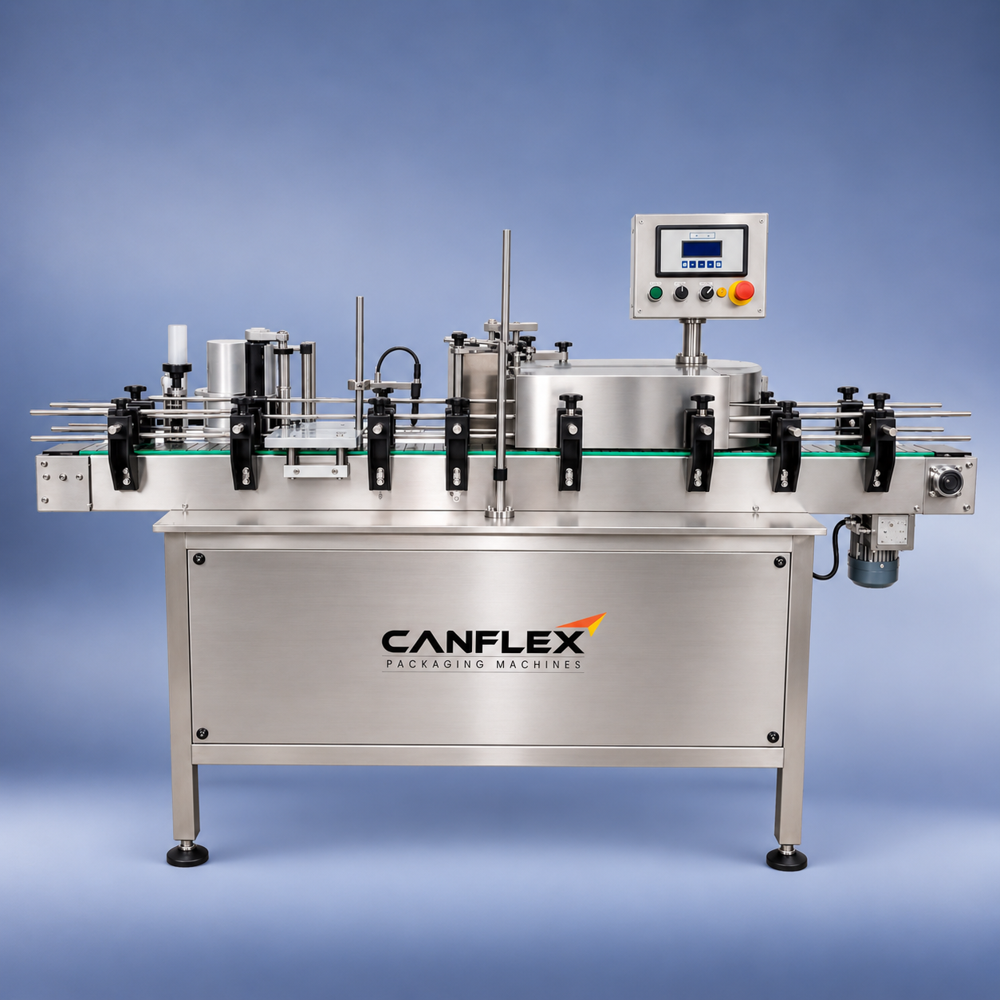

Sticker labelling machine for round bottles (with servo)
490000.0 INR/Unit
Product Details:
- Product Type Bottle/container sticker labelling machine
- Material Stainless steel
- Application Chemical, Medical, Beverage
- Packaging Material Paper, Plastic, Glass, Metal
- Computerized Yes
- Automatic Grade Automatic
- Drive Type Other
- Click to view more
X
Sticker labelling machine for round bottles (with servo) Price And Quantity
- 1 Unit
- 490000.0 INR/Unit
Sticker labelling machine for round bottles (with servo) Product Specifications
- 1 year
- Automatic
- Paper, Plastic, Glass, Metal
- 1828 610 1200 Millimeter (mm)
- Stainless steel
- Yes
- Chemical, Medical, Beverage
- 60 Pcs/min
- 350 Kilograms (kg)
- 1 kilovolt (kV)
- Silver
- High Performance, High Efficiency, Stable Performance, Simple Control
- Other
- Bottle/container sticker labelling machine
Sticker labelling machine for round bottles (with servo) Trade Information
- Telangana, India
- 10 Unit Per Month
- 30 Days
- Africa, Asia, Middle East
- All India
- Trade marked, ISO certififed, Member of Federation of Indian Export Organisation
Product Description
The Automatic Vertical Sticker Labelling Machine is designed for fast, accurate, and user-friendly labelling of round containers. Suitable for full or partial wrap-around labelling, it handles different container sizes with ease. An automatic roller spacing device eliminates the need for changing parts, simplifying operation. With output up to 60 containers per minute, it ensures efficient production.
Pan-India & international service and spares, customisation available.
Applications: Automatic round container sticker labelling machine
Features: Full & Partial Wrap-Around Labelling No Change Parts Required High-Speed Labelling
Specifications:
| Technical Specification | Details |
|---|---|
| Machine Type | Automatic Labelling Machine |
| Output | 4060 BPM |
| Direction of Movement | Left to Right |
| Controller | PLC-Based Controller |
| Label Accuracy | 12 mm |
| Conveyor Height | 850900 mm Adjustable |
| Conveyor Motor | 0.25 HP / 415 V / 50 Hz |
| Servo Motor | 400 W |
| Pressing Device Motor | 0.25 HP / 415 V / 50 Hz |

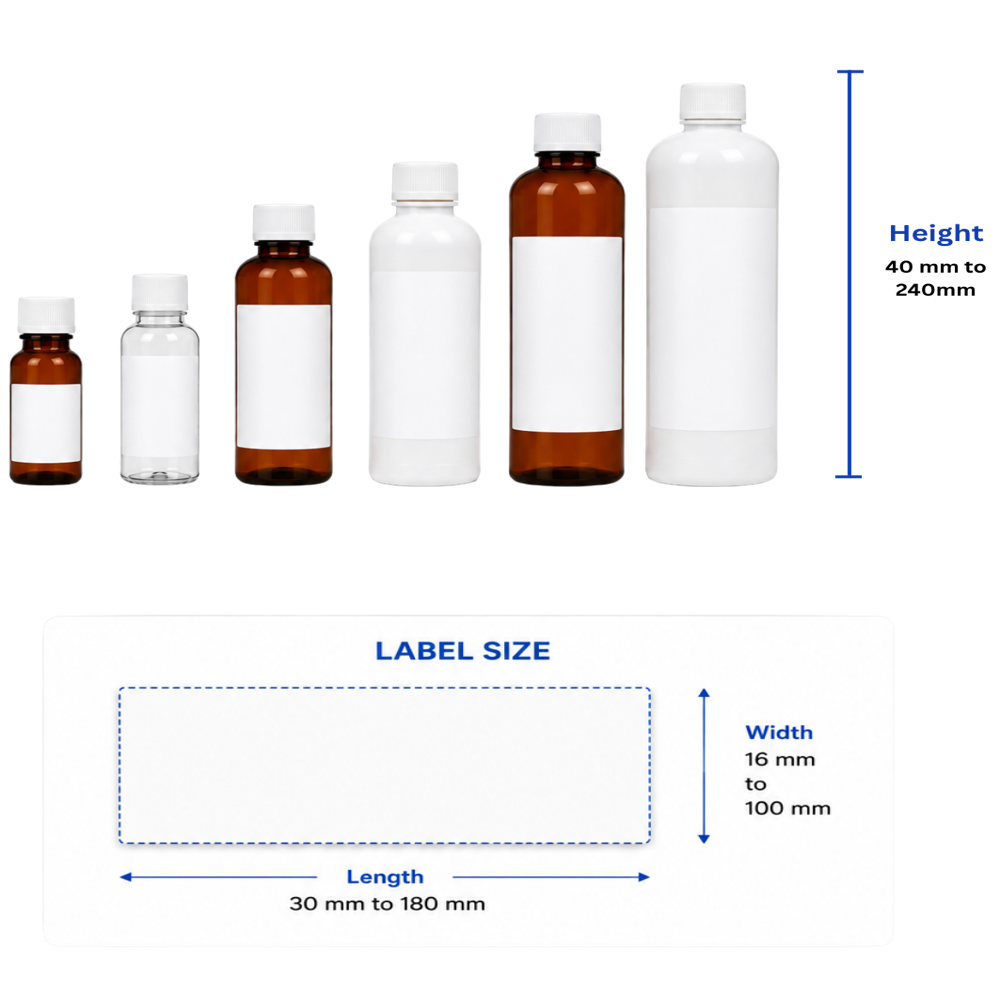

| Label Length | 30180 mm |
| Label Width | 16100 mm |
| Label Roll Diameter | Maximum 300 mm |
| Label Roll Core ID | 75 mm |
| Minimum Space Between Labels | 3 mm |
| Label Roll Direction | Clockwise |
| Round Container Diameter | 22100 mm |
| Round Container Height | 40240 mm |
| Other Container Heights | Available with applicable change parts |
| Machine Dimensions (L W H) | Approx. 1828 610 1200 mm |
| Net Weight | Approx. 350 kg |
| Machine Structure | SS Structure Cladded with SS 304 Sheet |
| GMP Compliance | Designed to Meet GMP Norms |
| Control System | PLC-Based Operation |
| Label Placement | Accurate Label Placement |
| Change Parts | Not Required for Standard Applications |
| Changeover | Very Low Downtime |
| Container Compatibility | Glass, Plastic, PET, Tin & Corrugated Containers |
| Electrical Supply Requirement | 1 Phase + Neutral + Earthing |
| Electrical Load | 1 kW |
| Output Disclaimer | Output depends on container size, fill size, neck diameter and nature of product |
| Customization | Equipment can be supplied as per customer requirements |
| Change Parts Note | Applicable change parts may be required for certain con |
