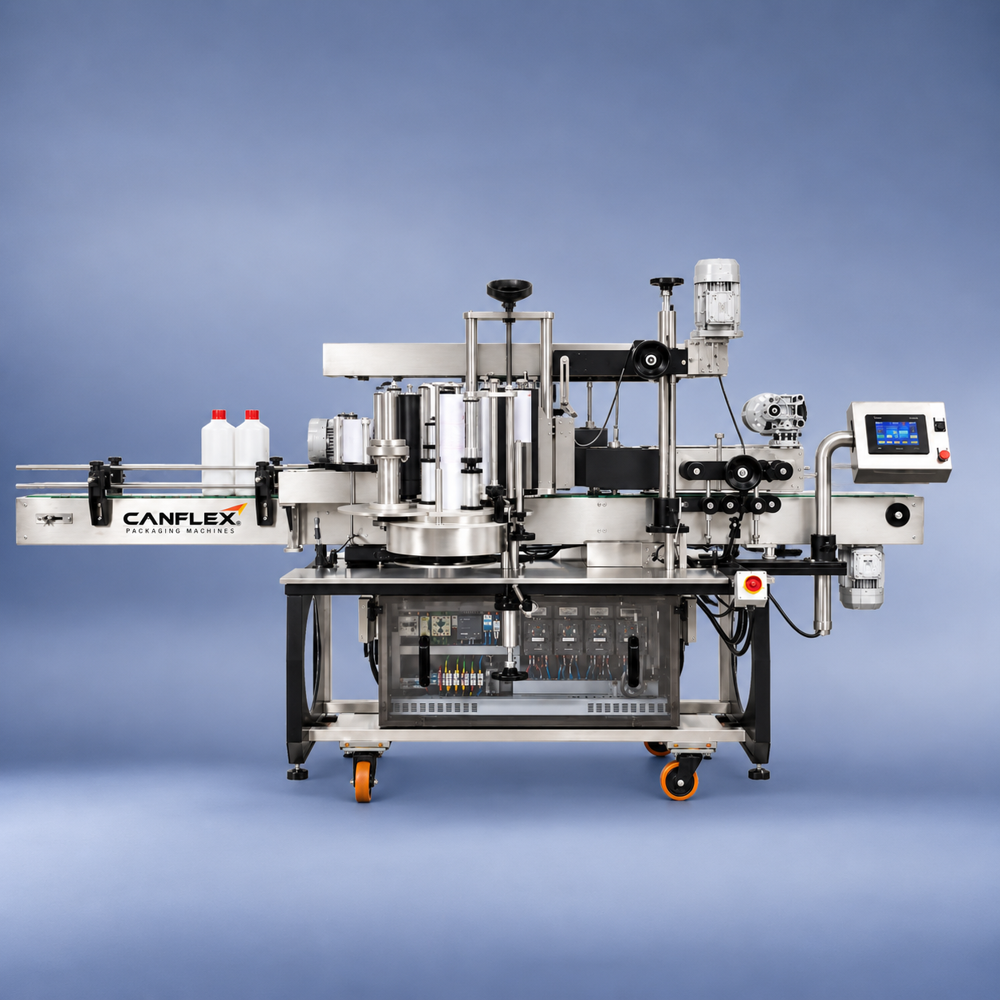

Sticker labelling machine for flat and round bottle

Sticker labelling machine for flat and round bottle

1162000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type Bottle/container sticker labelling machine
Material Stainless steel
Application Chemical, Medical, Beverage
Packaging Material Paper, Plastic, Glass
Computerized Yes
Automatic Grade Automatic
Drive Type Other
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Sticker labelling machine for flat and round bottle Price And Quantity

Minimum Order Quantity 1 Unit
Price 1162000.0 INR/Unit

Sticker labelling machine for flat and round bottle Product Specifications

Material Stainless steel
Voltage 2 kilovolt (kV)
Drive Type Other
Packaging Material Paper, Plastic, Glass
Product Type Bottle/container sticker labelling machine
Weight (kg) 500 Kilograms (kg)
Automatic Grade Automatic
Capacity 60 Pcs/min
Application Chemical, Medical, Beverage
Dimension (L*W*H) 2100 1800 1500 Millimeter (mm)
Warranty 1 year
Computerized Yes
Feature High Efficiency, Stable Performance, Simple Control
Color Silver

Sticker labelling machine for flat and round bottle Trade Information

FOB Port Telangana, India
Supply Ability 10 Unit Per Month
Delivery Time 30 Days
Main Export Market(s) Asia, Middle East, Africa
Main Domestic Market All India
Certifications Trade marked, ISO certififed, Member of Federation of Indian Export Organisation

Product Description

The Automatic Vertical Sticker Labelling Machine is designed for fast, accurate, and user-friendly labelling of flat, rectangular, and round containers. Suitable for full or partial labelling, it handles different container sizes with ease. An automatic roller spacing device eliminates change parts, simplifying setup and operation. With output of 4060 BPM, it ensures consistent and efficient production.

Pan-India & international service and spares, customisation available.

Applications: Automatic Sticker Labelling Machine Flat And Round Container

Features: Multi-Shape Container Labelling No Change Parts Required High-Speed Performance

SPECIFICATIONS:

Technical Specification	Details
Machine Type	Automatic Labelling Machine
Filling Range	100 ml to 5000 ml
Output	4060 BPM
Direction of Movement	Left to Right
Controller	PLC-Based Control
Conveyor Motor	0.25 HP / 415 V / 50 Hz
Pressing Device Motor	0.25 HP / 415 V / 50 Hz
Servo Motor	400 W Each Side
Bottle Movement Flat Containers	Top Drive
Bottle Movement Round Containers	Side Drive
Conveyor Height	850900 mm Adjustable
Machine Dimensions (L W H)	Approx. 2100 1800 1500 mm
Net Weight	Approx. 500 kg

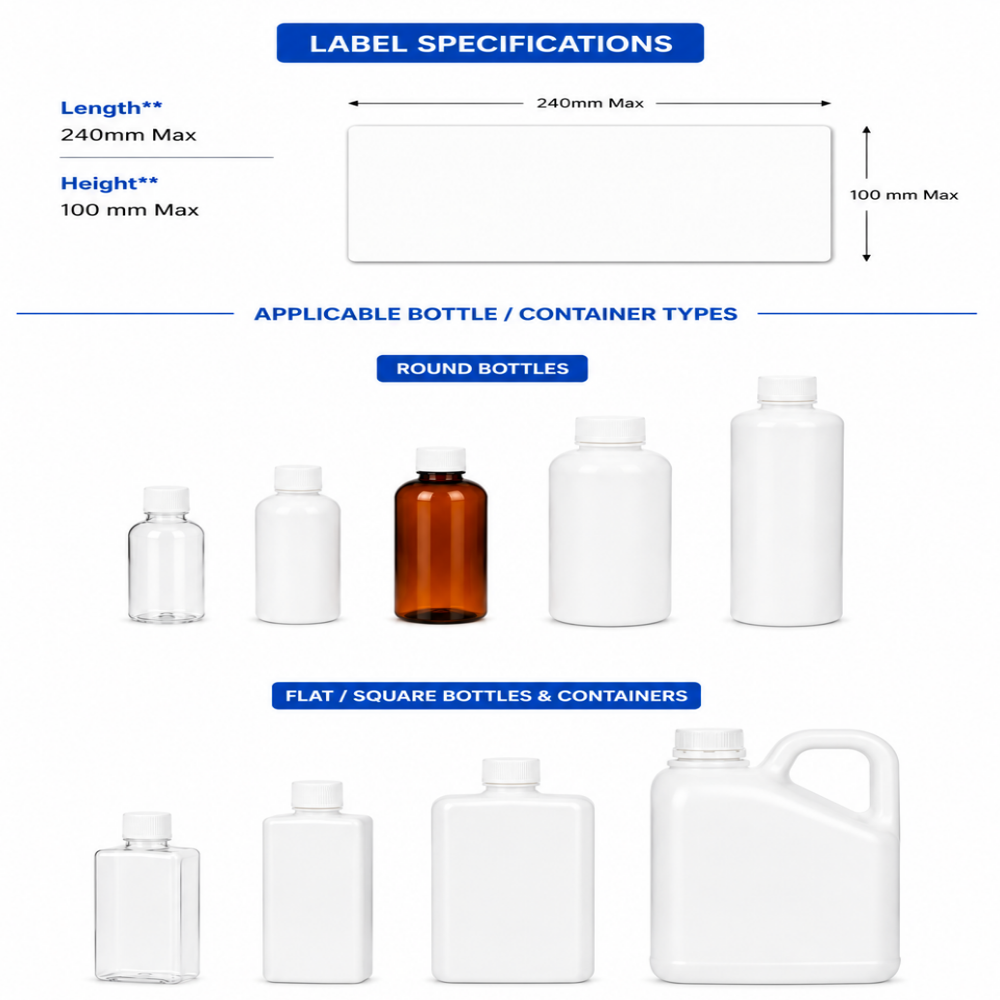

Label Length	Maximum 240 mm
Label Height	Maximum 100 mm
Label Roll Diameter	Maximum 300 mm
Label Roll ID	75 mm
Minimum Space Between Labels	3 mm
Front Label Roll	Clockwise Opening
Back Label Roll	Anti-Clockwise Opening
Production Speed	High Production Speed
Control System	Servo PLC-Based Operation
Label Placement	Accurate Label Placement
Change Parts	Not Required
Changeover	Very Low Downtime
Container Compatibility	Glass, Plastic, PET, Tin & Corrugated Containers
Electrical Supply Requirement	1 Phase + Neutral + Earthing
Electrical Load	2 kW
Output Disclaimer	Output depends on container size, fill size, neck diameter and nature of product
Customization	Equipment can be supplied as per customer requirements

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Bottle Filling Machine' category

Water jet bottle cleaning machine Price : 379996.0 INR/Piece Minimum Order Quantity : 1 Warranty : 1 year Color : Silver Computerized : Yes Feature : High Performance, High Efficiency, Stable Performance Capacity : 40 Pcs/min Application : Chemical, Food, Medical, Beverage Drive Type : Other Product Type : Bottle/container cleaning machine Automatic Grade : Automatic Material : SS304 Packaging Material : Metal, Plastic, Glass Weight (kg) : 600 Kilograms (kg) Voltage : 3 kilovolt (kV)

Send Inquiry

Sticker labelling machine for round bottles (with servo) Price : 490000.0 INR/Unit Minimum Order Quantity : 1 Warranty : 1 year Color : Silver Computerized : Yes Feature : High Performance, High Efficiency, Stable Performance, Simple Control Capacity : 60 Pcs/min Application : Chemical, Medical, Beverage Drive Type : Other Product Type : Bottle/container sticker labelling machine Automatic Grade : Automatic Material : Stainless steel Packaging Material : Paper, Plastic, Glass, Metal Weight (kg) : 350 Kilograms (kg) Voltage : 1 kilovolt (kV) Dimension (L*W*H) : 1828 610 1200 Millimeter (mm)

Send Inquiry

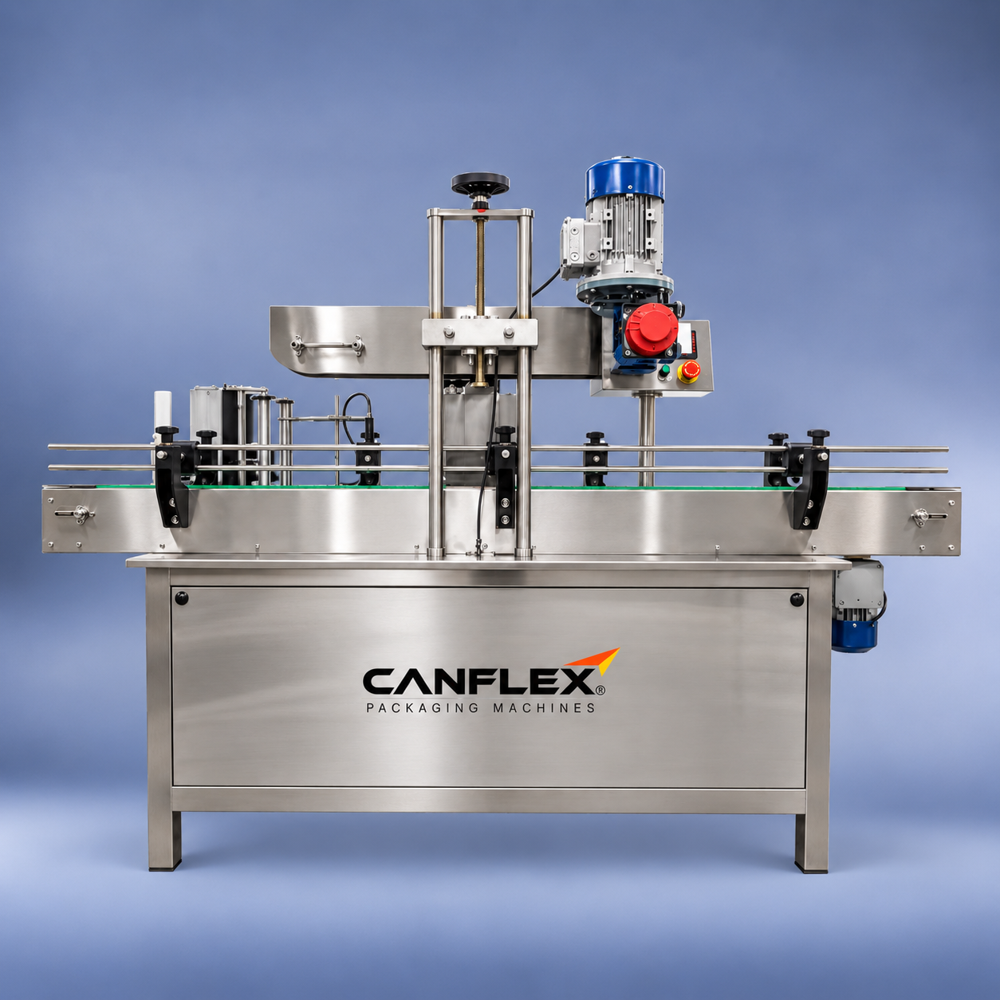

Sticker labelling machine for flat bottle Price : 490000.0 INR/Unit Minimum Order Quantity : 1 Warranty : 1 year Color : Silver Computerized : Yes Feature : High Performance, High Efficiency, Stable Performance, Simple Control Capacity : 60 Pcs/min Application : Beverage, Chemical, Medical Drive Type : Other Product Type : Bottle/container sticker labelling machine Automatic Grade : Automatic Material : Stainless steel Packaging Material : Plastic, Glass, Metal Weight (kg) : 350 Kilograms (kg) Voltage : 1 kilovolt (kV) Dimension (L*W*H) : 1500 610 1200 Millimeter (mm)
