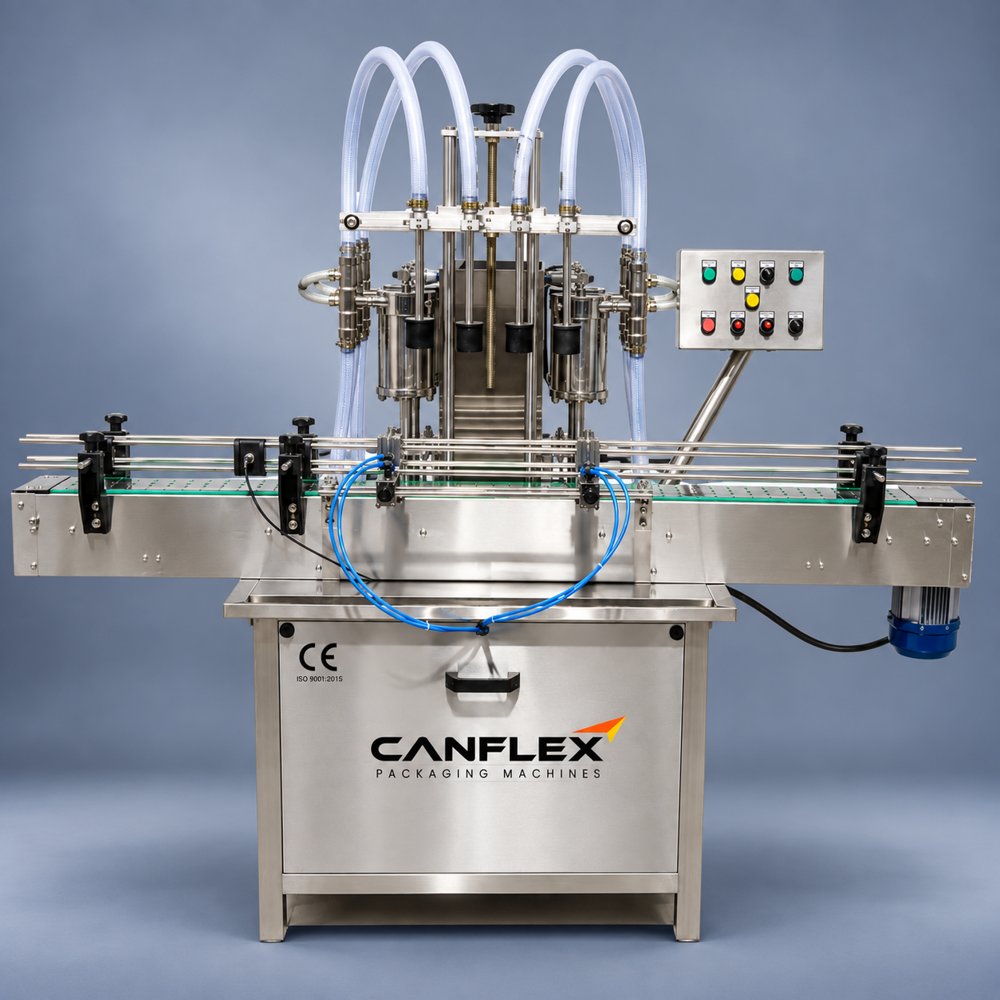

Bottle filling machine volumetric (4 head)

Bottle filling machine volumetric (4 head)

462000.0 INR/Number

Get a Price/Quote

Product Details:

Product Type Bottle/container filling machine
Material SS304
Application Chemical, Medical, Beverage
Packaging Material Glass, Metal, Plastic
Computerized Yes
Automatic Grade Automatic
Control System PLC Control
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Bottle filling machine volumetric (4 head) Price And Quantity

Price 462000.0 INR/Number
Minimum Order Quantity 1 Number

Bottle filling machine volumetric (4 head) Product Specifications

Color Silver
Automatic Grade Automatic
Dimension (L*W*H) 1800 mm (L) x 950 mm (W) x 1800 (H) Millimeter (mm)
Product Type Bottle/container filling machine
Material SS304
Weight (kg) 450 Kilograms (kg)
Capacity 18-40 Pcs/min
Computerized Yes
Drive Type Other
Control System PLC Control
Warranty 1 YEAR
Voltage 1 kilovolt (kV)
Application Chemical, Medical, Beverage
Packaging Material Glass, Metal, Plastic
Feature High Efficiency, Stable Performance, Simple Control

Bottle filling machine volumetric (4 head) Trade Information

FOB Port Telangana, India
Supply Ability 10 Number Per Month
Delivery Time 30 Days
Main Export Market(s) Eastern Europe, Western Europe, Asia, Middle East, Africa
Main Domestic Market All India
Certifications Trade marked, ISO certififed, Member of Federation of Indian Export Organisation

Product Description

The Automatic Volumetric Liquid Filling Machine delivers precise filling for liquids using diving nozzles and a volumetric system. Its stainless-steel construction features an S.S. slat conveyor, self-centring reciprocating nozzles, and syringes. The no-container-no-filling system minimizes wastage, while synchronized drives ensure smooth operation. With 1840 BPM output, it handles 501000 ml filling ranges with change parts.

Pan-India service and spares, customisation available.

Applications: Liquids and viscous products, juices, mineral water, chemicals

Features: Diving Nozzle Filling System Synchronized Variable-Speed Drive

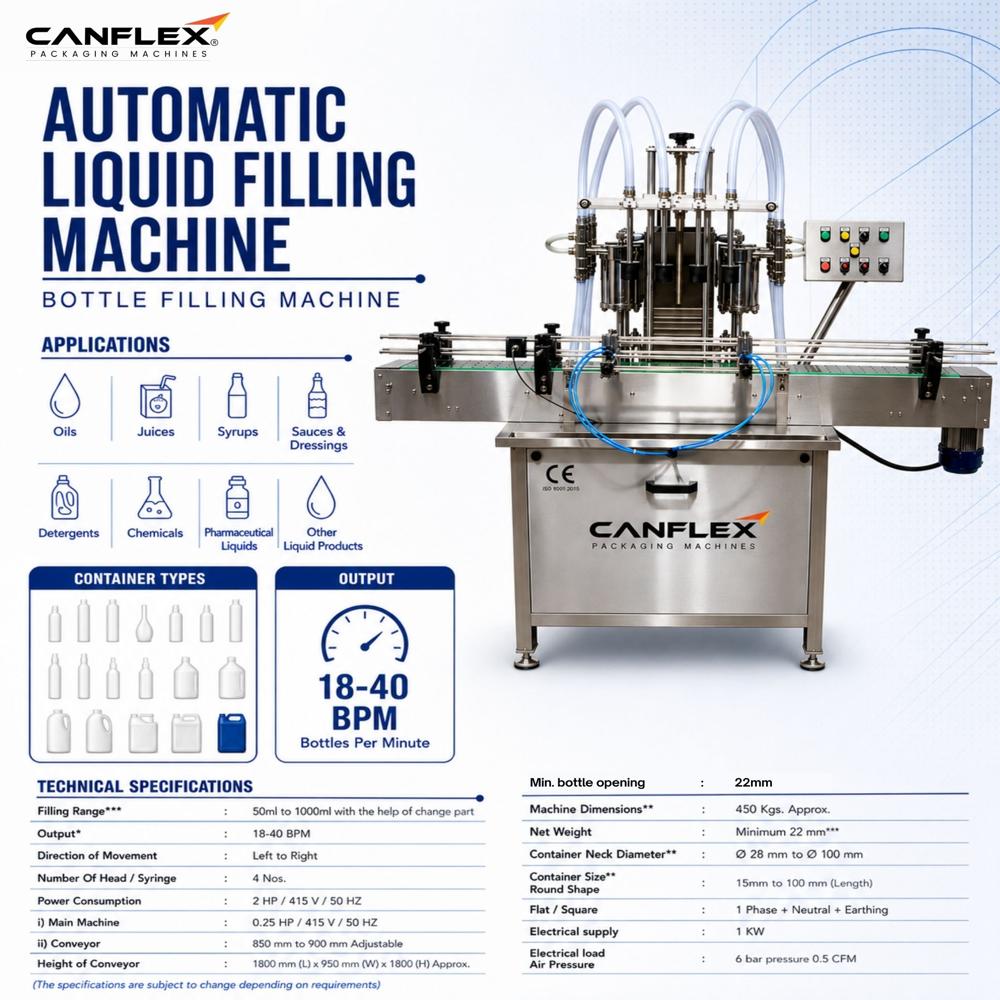

Technical Specification	Details
Filling Range	50 ml to 1000 ml with change parts
Output	1840 BPM
Direction of Movement	Left to Right
Number of Filling Heads / Syringes	4 Nos.
Main Machine Motor	2 HP / 415 V / 50 Hz
Conveyor Motor	0.25 HP / 415 V / 50 Hz
Conveyor Height	850900 mm Adjustable
Machine Dimensions (L W H)	Approx. 1800 950 1800 mm
Net Weight	Approx. 450 kg
Container Neck Diameter	Minimum 22 mm
Round Container Diameter	28 mm to 100 mm
Round Container Height	58 mm to 240 mm
Round Container Other Heights	Available with suitable change parts
Flat / Square Container Length	15 mm to 100 mm
Flat / Square Container Width	10 mm to 50 mm
Flat / Square Container Height	58 mm to 240 mm
Flat / Square Container Other Heights	Available with suitable change parts
Filling Accuracy	1% on Single Dose
No Bottle No Filling System	Yes
Contact Parts	SS 316 / SS 304
Machine Construction	Rigid, Vibration-Free Construction
Machine Body	SS, Elegant Matt Finish
Changeover	Minimum Changeover Time for Different Container Sizes / Fill Sizes
Conveyor Guide Profile	Self-Lubricating UHMW-PE
Conveyor Chain	SS Slat Chain
Conveyor Operation	Low-Friction, Smooth & Noiseless
Bottle Stopping System	Pneumatically Operated
Main Motor & Conveyor Drive	Synchronized AC Drives
Safety Guards	Conveyor Gearbox, Motor & Pneumatic Cylinders
Electrical Protection	Overcurrent, Voltage Fluctuation & Short-Circuit Protection
Machine Design	GMP Model
Electrical Supply Requirement	1 Phase + Neutral + Earthing
Electrical Load	1 kW
Compressed Air Pressure	6 Bar
Compressed Air Consumption	0.5 CFM
Change Parts	Required for Different Fill Ranges / Container Sizes
Customization	Equipment can be supplied as per customer requirements
Output Disclaimer	Output depends on container size, fill size, neck diameter and nature of liquid

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Bottle Filling Machine' category

Automatic bottle filling machine (6 head) Price : 1300000.0 INR/Number Minimum Order Quantity : 1 Computerized : Yes Drive Type : Other Capacity : 1224 Pcs/min Application : Chemical, Medical, Beverage Feature : High Efficiency, Stable Performance, Simple Control Warranty : 1 YEAR Automatic Grade : Automatic Color : Silver Material : SS304 Product Type : Bottle/container filling machine Packaging Material : Plastic, Glass, Metal Voltage : 415 Volt (v) Control System : PLC Control Weight (kg) : 500 Kilograms (kg) Dimension (L*W*H) : 8 ft length x 5 ft width x 6 ft height Foot (ft)

Send Inquiry

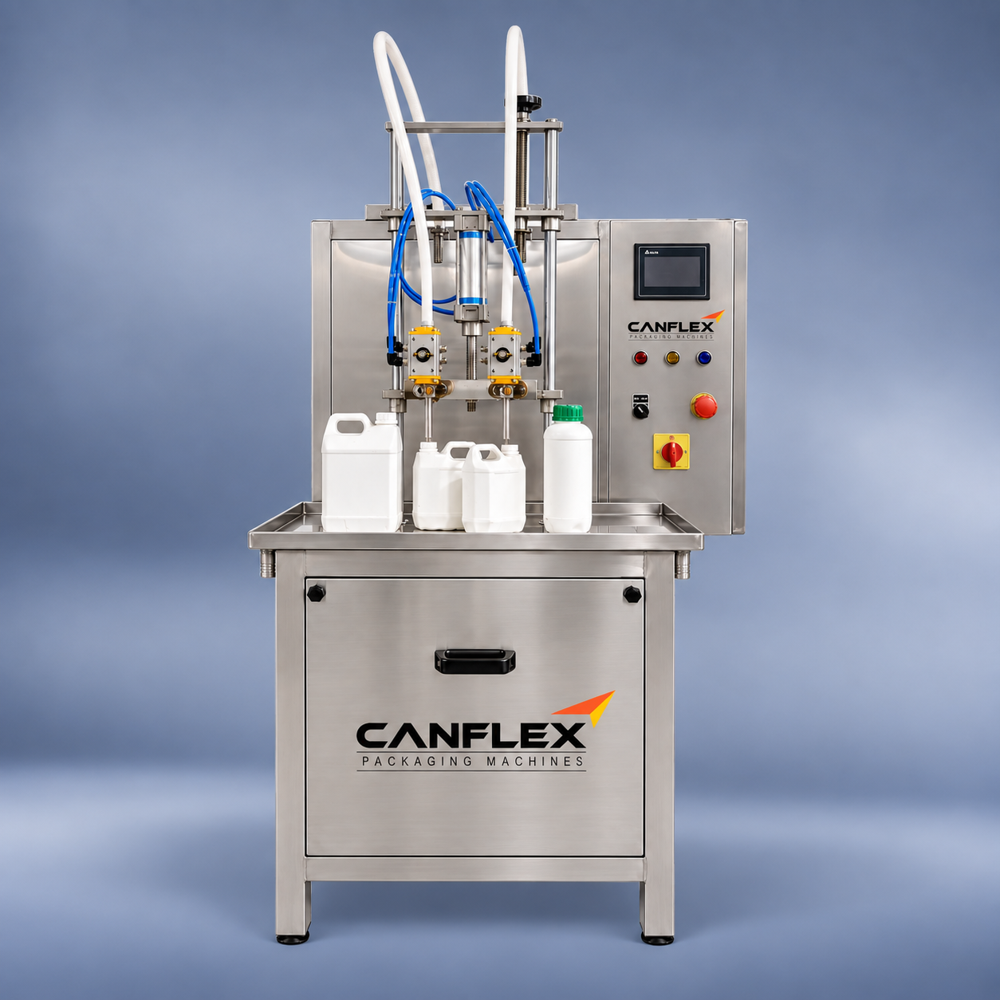

Semi-automatic filling machine 5 litre Price : 450000.0 INR/Number Minimum Order Quantity : 1 Computerized : No Drive Type : Other Capacity : 46 Pcs/min Application : Chemical, Food, Medical, Beverage Feature : Low Noise, Lower Energy Consumption, Simple Control Warranty : 1 YEAR Automatic Grade : SemiAutomatic Color : Silver Material : SS304 Product Type : Bottle/container filling machine Packaging Material : Plastic, Glass, Metal Voltage : 0.7 kilovolt (kV) Control System : Human Machine Interface Weight (kg) : 150 Kilograms (kg) Dimension (L*W*H) : 2.5 feet (L) x 2.5 feet (w) x 5 feet (H) Foot (ft)
