Automatic bottle filling machine (6 head)

Automatic bottle filling machine (6 head)

1300000.0 INR/Number

Get a Price/Quote

Product Details:

Product Type Bottle/container filling machine
Material SS304
Application Chemical, Medical, Beverage
Packaging Material Plastic, Glass, Metal
Computerized Yes
Automatic Grade Automatic
Control System PLC Control
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Automatic bottle filling machine (6 head) Price And Quantity

Price 1300000.0 INR/Number
Minimum Order Quantity 1 Number

Automatic bottle filling machine (6 head) Product Specifications

Automatic Grade Automatic
Voltage 415 Volt (v)
Control System PLC Control
Material SS304
Warranty 1 YEAR
Drive Type Other
Feature High Efficiency, Stable Performance, Simple Control
Computerized Yes
Product Type Bottle/container filling machine
Weight (kg) 500 Kilograms (kg)
Application Chemical, Medical, Beverage
Packaging Material Plastic, Glass, Metal
Color Silver
Dimension (L*W*H) 8 ft length x 5 ft width x 6 ft height Foot (ft)
Capacity 12-24 Pcs/min

Automatic bottle filling machine (6 head) Trade Information

FOB Port Telangana, India
Supply Ability 10 Number Per Month
Delivery Time 30 Days
Main Export Market(s) Eastern Europe, Western Europe, Middle East, Africa, Asia
Main Domestic Market All India
Certifications Trade marked, ISO certififed, Member of Federation of Indian Export Organisation

Product Description

Service and customisation available pan India & internationally. The PLC-Based Liquid Filling Machine delivers precise and efficient filling for glass, plastic, and aluminium bottles while meeting GMP requirements. Featuring microcomputer-controlled flow measurement and servo-based capacity adjustment, it eliminates the need for changing parts. Its compact design simplifies operation and reduces setup time, achieving up to 24 BPM for 1-litre and 12 BPM for 5-litre bottles.

Applications: Liquids and viscous products, juices, mineral water, chemicals, fertilisers

Features: PLC-Based Precision Filling Servo-Based Capacity Adjustment GMP-Compatible

Technical Specification	Details
Filling Range	500 ml to 5000 ml
Output 1 L	Up to 24 BPM
Output 5 L	Up to 12 BPM
Filling System	Servo with Gear Pump
Direction of Movement	Left to Right
Number of Filling Heads / Syringes	6 Nos.
Electrical Supply	230 V / 50 Hz
Conveyor Motor	0.5 HP / 415 V / 50 Hz
Conveyor AC Drive	0.5 HP
Filling Accuracy	0.10.2%
Tank Capacity	Approx. 200 L
Conveyor Dimensions	8 ft L 100 mm W 750 mm H
Machine Dimensions	8 ft L 5 ft W 6 ft H
Net Weight	Approx. 550 kg
Container Neck Diameter	Minimum 14 mm
Round Container Diameter	28 mm to 100 mm
Round Container Height	58 mm to 240 mm
Flat / Square Container Length	15 mm to 100 mm
Flat / Square Container Width	10 mm to 50 mm
Flat / Square Container Height	58 mm to 240 mm
No Bottle No Filling System	Yes
Contact Parts	SS 316 / SS 304
Number of Filling Stations	6
Control System	PLC Servo-Based Control System
Nozzle Control	Pneumatically Controlled
No Container No Fill	Yes
Nozzle Type	Drip-Free
Filling Nozzle Movement	Reciprocating with Self-Centering Device
Bottle Stopper	Pneumatically Operated
No-Air Machine Stop	Yes
Tank Level Controller	Digital Output
Nozzle Mounting Stand	Specially Designed
Machine Structure	Laser-Cut Finish
Conveyor Operation	Low-Noise
Conveyor Tray	Yes
Phase Indicator Lamp	3-Phase
Phase Protection Switch	3-Phase
Bottle Size Adjustment	Sliding Arrangement
HMI	Machine Operation Animation
Recipe Function	Available on HMI
Nozzle Bypass System	Yes
Electrical Supply Requirement	3 Phase + Neutral + Earthing
Electrical Load	3.5 kW
Compressed Air Pressure	6 Bar
Compressed Air Consumption	10 CFM
Output Disclaimer	Output depends on container size, fill size, container neck diameter and nature of liquid
Customization	Equipment can be supplied as per buyers requirements

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Bottle Filling Machine' category

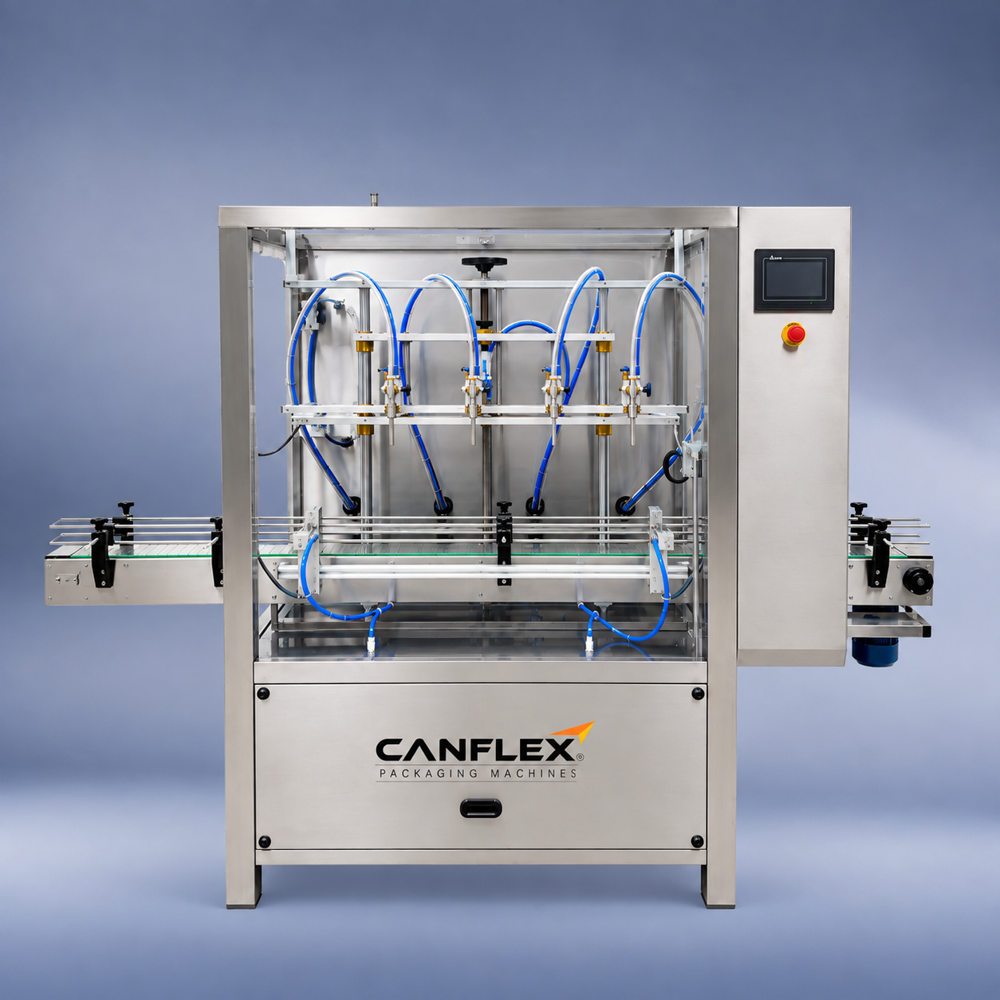

Automatic bottle filling machine with servo (4 head) Price : 1100000.0 INR/Number Minimum Order Quantity : 1 Automatic Grade : Automatic Material : SS304 Warranty : 1 YEAR Drive Type : Other Feature : High Efficiency, Stable Performance, Simple Control Product Type : Bottle/container filling machine Computerized : Yes Application : Beverage, Chemical, Food, Medical Color : Silver Voltage : 415 Volt (v) Capacity : 850 Pcs/min Control System : PLC Control Weight (kg) : 500 Kilograms (kg) Packaging Material : Metal, Plastic, Glass
