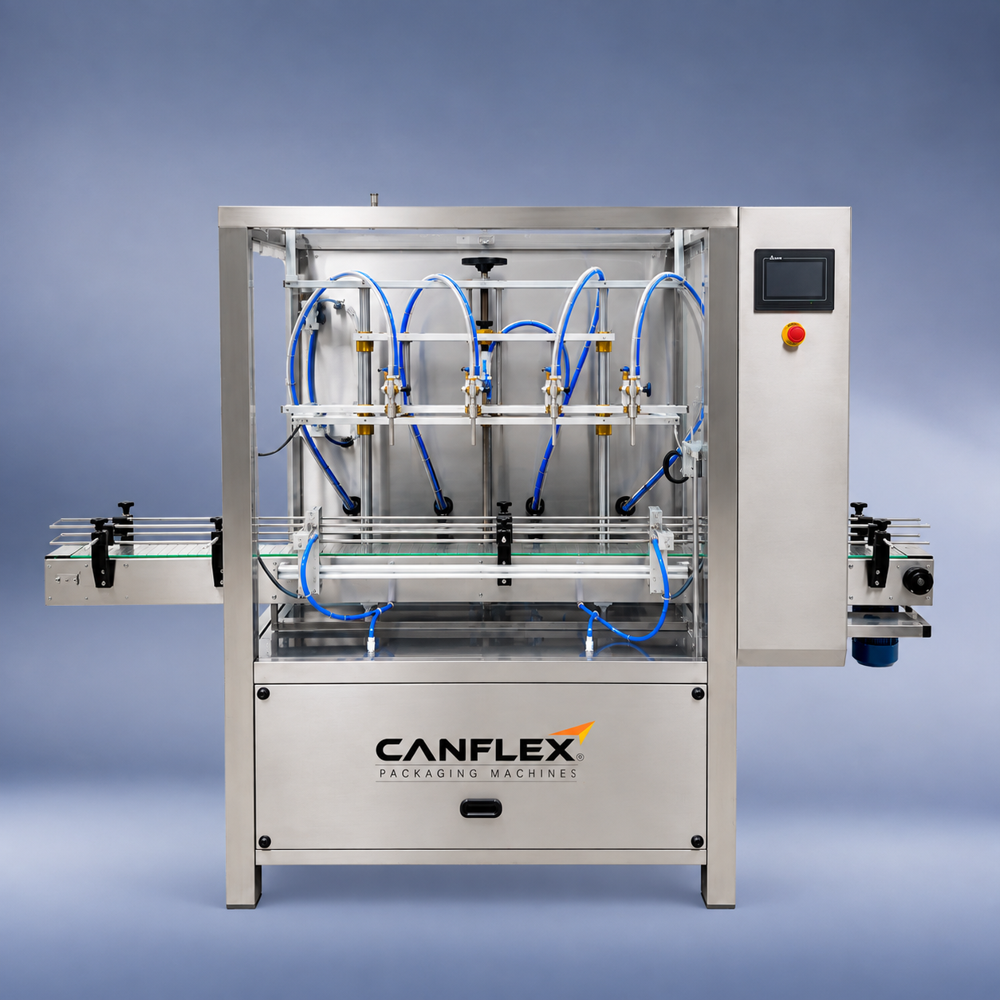

Automatic bottle filling machine with servo (4 head)

Automatic bottle filling machine with servo (4 head)

1100000.0 INR/Number

Get a Price/Quote

Product Details:

Product Type Bottle/container filling machine
Material SS304
Application Beverage, Chemical, Food, Medical
Packaging Material Metal, Plastic, Glass
Computerized Yes
Automatic Grade Automatic
Control System PLC Control
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Automatic bottle filling machine with servo (4 head) Price And Quantity

Minimum Order Quantity 1 Number
Price 1100000.0 INR/Number

Automatic bottle filling machine with servo (4 head) Product Specifications

Feature High Efficiency, Stable Performance, Simple Control
Drive Type Other
Product Type Bottle/container filling machine
Warranty 1 YEAR
Voltage 415 Volt (v)
Dimension (L*W*H) 8 ft L x 5 ft W x 6 ft H Foot (ft)
Automatic Grade Automatic
Color Silver
Packaging Material Metal, Plastic, Glass
Application Beverage, Chemical, Food, Medical
Weight (kg) 500 Kilograms (kg)
Computerized Yes
Material SS304
Capacity 8-50 Pcs/min
Control System PLC Control

Automatic bottle filling machine with servo (4 head) Trade Information

FOB Port TELANGANA, INDIA
Supply Ability 10-20 Number Per Month
Delivery Time 30 Days
Main Export Market(s) Asia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications Trade marked, ISO certififed, Member of Federation of Indian Export Organisation

Product Description

The PLC-Based Liquid Filling Machine provides accurate, efficient filling for glass, plastic, and aluminium bottles while meeting GMP requirements. Its microcomputer-controlled flow measurement and servo-based adjustment enable precise dosing without changing parts. Designed for flexible production, it delivers up to 50 BPM for 100 ml, 1624 BPM for 1-litre, and 810 BPM for 5-litre bottles.

Applications: Liquids and viscous products, juices, mineral water, chemicals, fertilisers, beverages

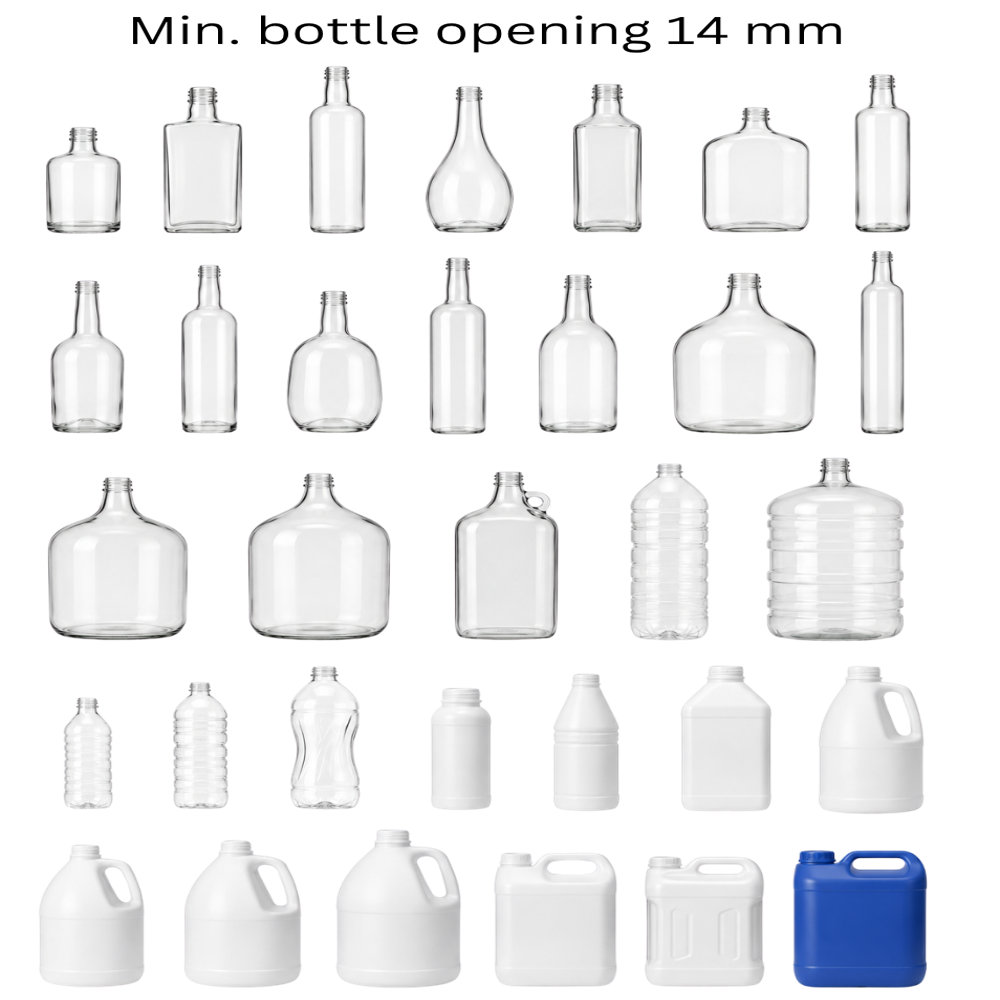

Features: PLC-Based Electronic Filling Control Multi-Container Compatibility Servo-Based Capacity Adjustment

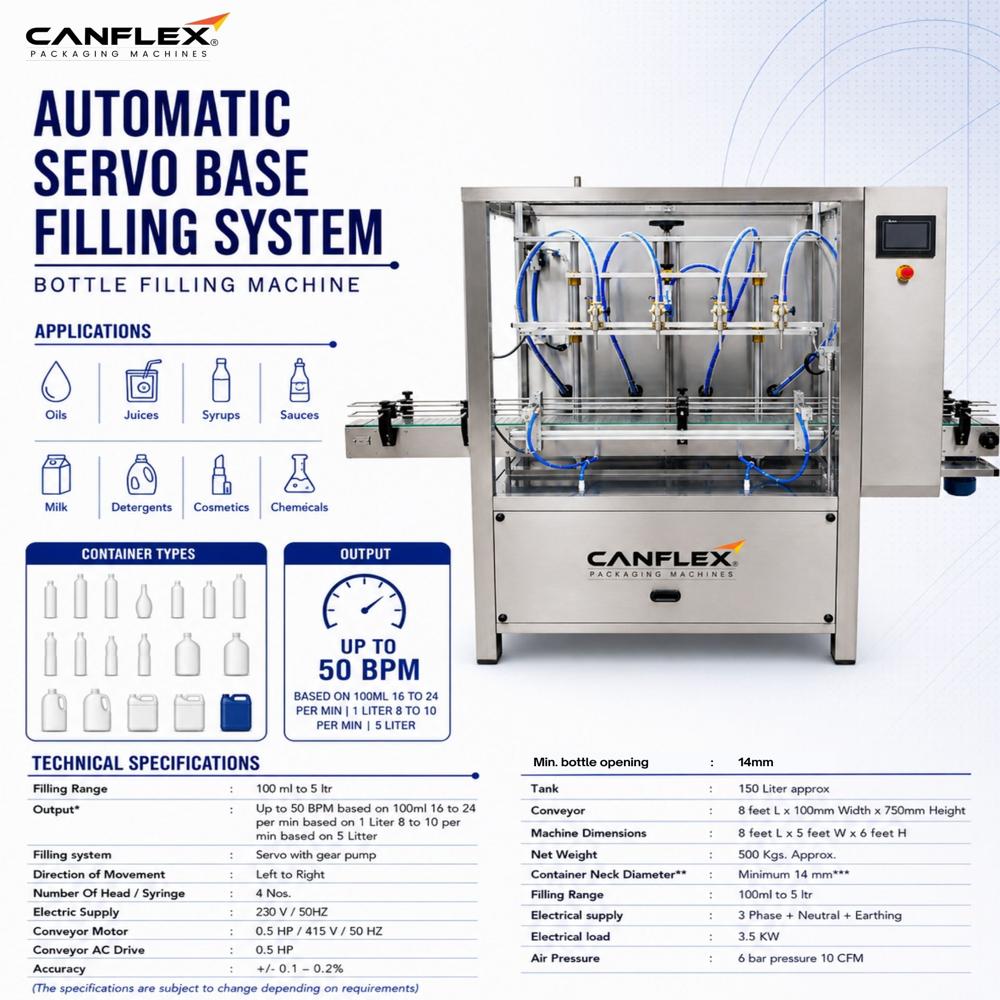

Technical Specification	Details
Filling Range	100 ml to 5 L
Output 100 ml	Up to 50 BPM
Output 1 L	1624 BPM
Output 5 L	810 BPM
Filling System	Servo with Gear Pump
Direction of Movement	Left to Right
Number of Filling Heads / Syringes	4 Nos.
Electrical Supply	230 V / 50 Hz
Conveyor Motor	0.5 HP / 415 V / 50 Hz
Conveyor AC Drive	0.5 HP
Filling Accuracy	0.10.2%
Tank Capacity	Approx. 150 L
Conveyor Dimensions	8 ft L 100 mm W 750 mm H
Machine Dimensions	8 ft L 5 ft W 6 ft H
Net Weight	Approx. 500 kg
Container Neck Diameter	Minimum 14 mm
Round Container Diameter	28 mm to 100 mm
Round Container Height	58 mm to 240 mm
Flat / Square Container Length	15 mm to 100 mm
Flat / Square Container Width	10 mm to 50 mm
Flat / Square Container Height	58 mm to 240 mm
No Bottle No Filling System	Yes
Contact Parts	SS 316 / SS 304
Number of Filling Stations	4
Control System	PLC Servo-Based Control System
Nozzle Control	Pneumatically Controlled
No Container No Fill	Yes
Nozzle Type	Drip-Free
Filling Nozzle Movement	Reciprocating with Self-Centering Device
Bottle Stopper	Pneumatically Operated
No-Air Machine Stop	Yes
Tank Level Controller	Digital Output
Nozzle Mounting Stand	Specially Designed
Machine Structure	Laser-Cut Finish
Conveyor Operation	Low-Noise
Conveyor Tray	Yes
Phase Indicator Lamp	3-Phase
Phase Protection Switch	3-Phase
Bottle Size Adjustment	Sliding Arrangement
HMI	Machine Operation Animation
Recipe Function	Available on HMI
Nozzle Bypass System	Yes
Electrical Supply Requirement	3 Phase + Neutral + Earthing
Electrical Load	3.5 kW
Air Pressure	6 Bar
Compressed Air Consumption	10 CFM
Output Disclaimer	Output depends on container size, fill size, container neck diameter and nature of liquid
Customization	Equipment can be supplied as per buyer's requirements

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Bottle Filling Machine' category

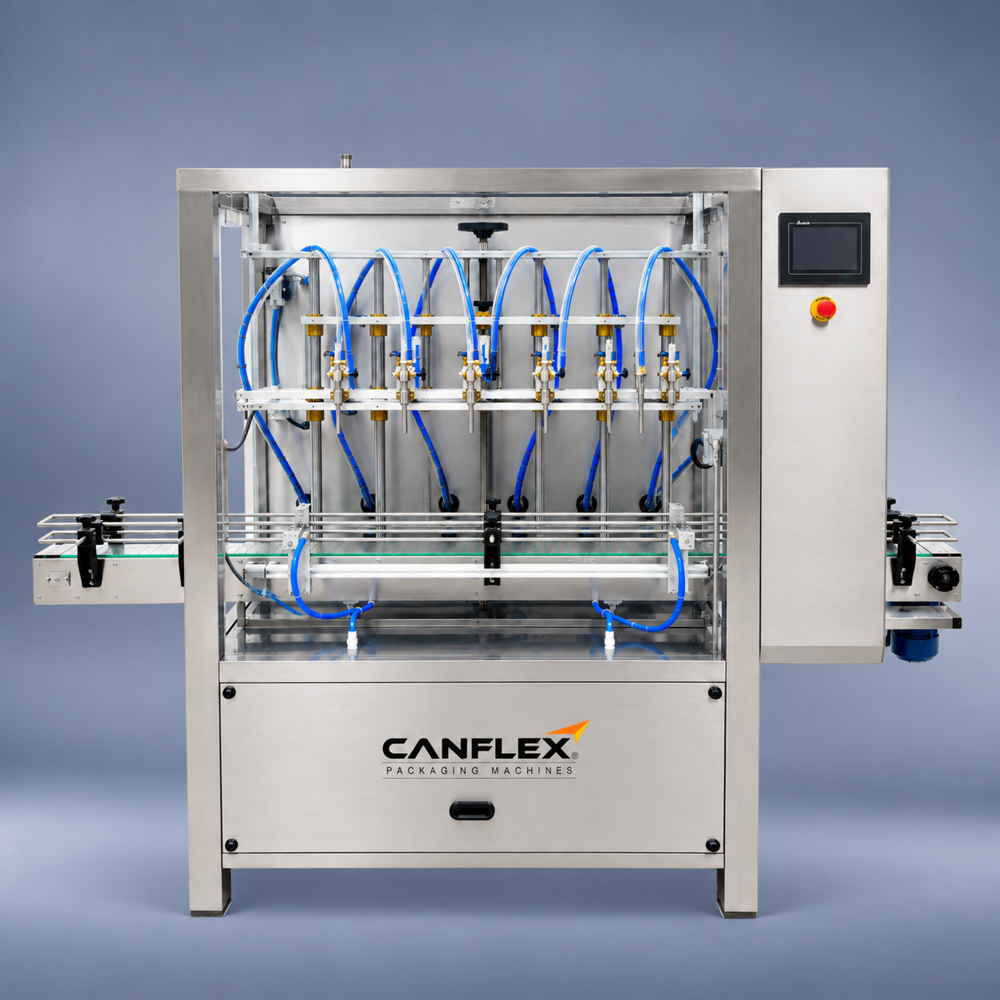

Automatic bottle filling machine (6 head) Price : 1300000.0 INR/Number Minimum Order Quantity : 1 Feature : High Efficiency, Stable Performance, Simple Control Drive Type : Other Product Type : Bottle/container filling machine Warranty : 1 YEAR Automatic Grade : Automatic Color : Silver Application : Chemical, Medical, Beverage Material : SS304 Computerized : Yes Voltage : 415 Volt (v) Capacity : 1224 Pcs/min Packaging Material : Plastic, Glass, Metal Weight (kg) : 500 Kilograms (kg) Control System : PLC Control
