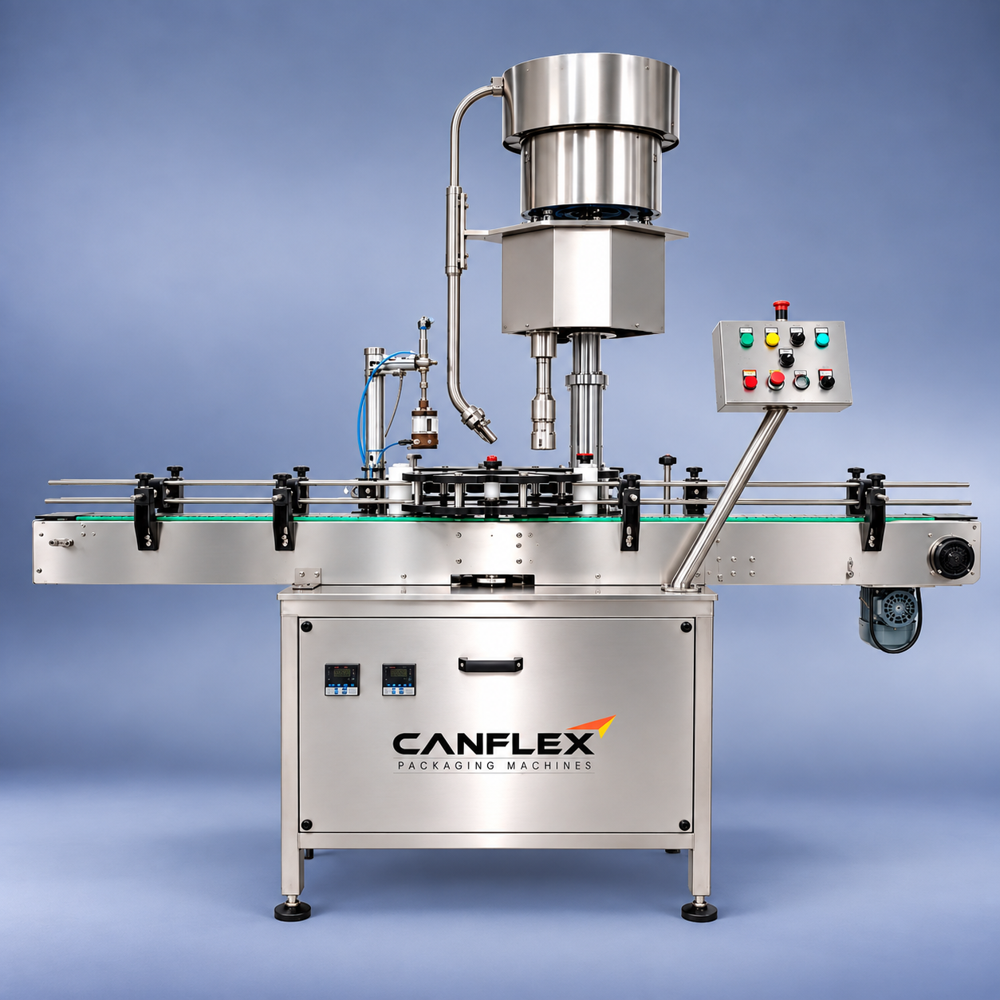

Bottle capping machine (1 head)

434000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type Bottle/container capping machine
Material Stainless steel
Application Chemical, Food, Medical, Beverage
Packaging Material Metal, Plastic, Glass
Computerized No
Automatic Grade Automatic
Control System PLC Control
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Bottle capping machine (1 head) Price And Quantity

Minimum Order Quantity 1 Number
Price 434000.0 INR/Unit

Bottle capping machine (1 head) Product Specifications

Weight (kg) 350 Kilograms (kg)
Control System PLC Control
Material Stainless steel
Warranty 1 YEAR
Capacity 30 Pcs/min
Voltage 415 Volt (v)
Dimension (L*W*H) 1800 1200 1700 mm Foot (ft)
Color Silver
Automatic Grade Automatic
Application Chemical, Food, Medical, Beverage
Product Type Bottle/container capping machine
Packaging Material Metal, Plastic, Glass
Drive Type Other
Computerized No
Feature High Performance, High Efficiency, Stable Performance

Bottle capping machine (1 head) Trade Information

FOB Port Telangana, India
Supply Ability 10 Number Per Month
Delivery Time 30 Days
Main Export Market(s) Middle East, Africa, Asia
Main Domestic Market All India
Certifications Trade Marked, Member of Federation of Indian Export Organisation, ISO certified

Product Description

The Automatic Screw Capping Machine delivers fast, reliable, and precise bottle sealing for diverse packaging applications. Built with a sturdy welded steel frame and stainless-steel enclosure, it offers durability and easy maintenance. Featuring adjustable height settings, it accommodates bottles up to 44 mm in diameter and achieves speeds of up to 30 BPM for efficient production.

Service, spares and customisation available pan India & internationally.

Applications: Automatic screw and ROPP capping machine

Features: High-Speed Capping Adjustable Height System Stainless-Steel Construction

Technical Specification	Details
Machine Type	Automatic Screw Capping Machine
Output	2030 BPM
Direction of Movement	Left to Right
Number of Sealing Heads	1 No.
Main Motor	1.5 HP / 415 V / 50 Hz
Cap Feeding Bowl	300 W, Magnetic Coil
Conveyor Dimensions	1800 mm L 150 mm W 860 mm H
Machine Dimensions (L W H)	1800 1200 1700 mm
Net Weight	Approx. 350 kg
Container Change Parts	Star Wheel, Back Guide, Feed Worm
Cap Change Parts	Cap Die, Delivery Chute, Cap Feeding Bowl
Screw Cap Diameter	19 mm to 38 mm
Screw Cap Height	15 mm to 18.3 mm

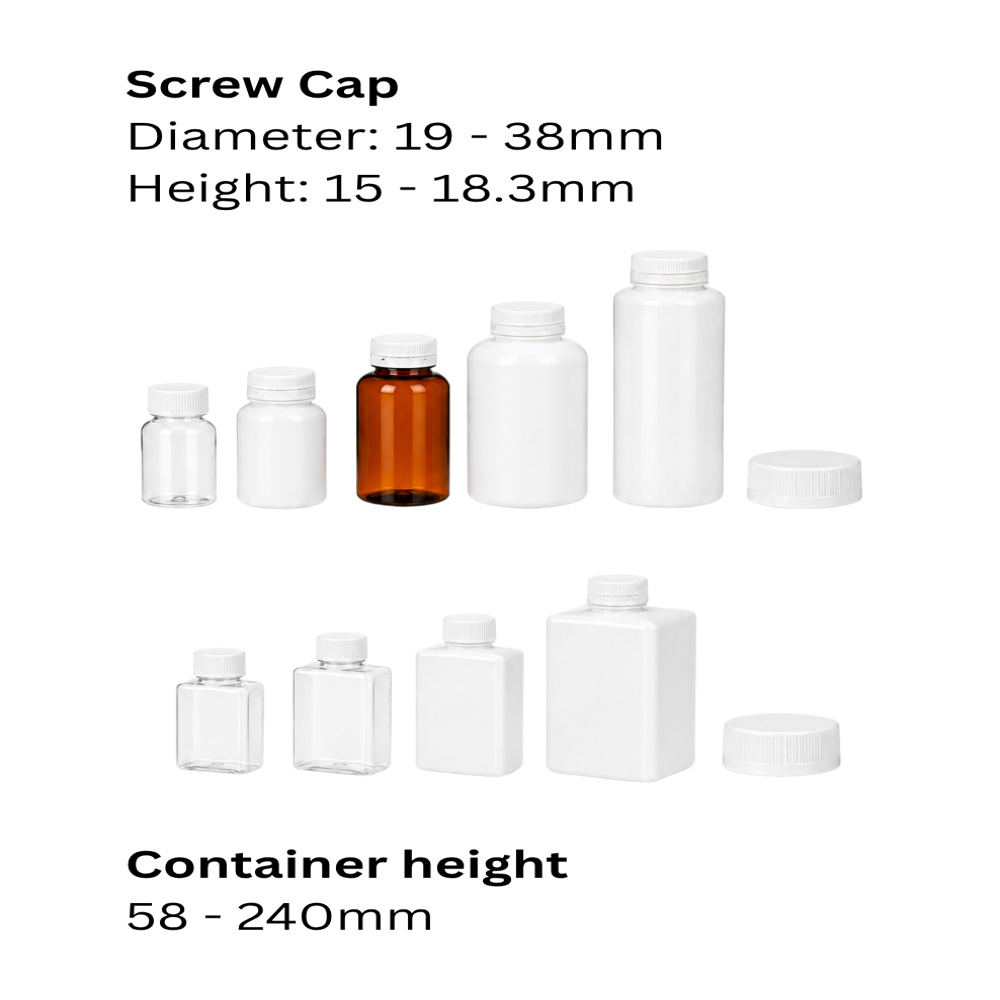

Round Container Diameter	28 mm to 100 mm
Round Container Height	58 mm to 240 mm
Round Container Other Heights	Available with suitable change parts
Flat / Square Container Length	15 mm to 100 mm
Flat / Square Container Width	10 mm to 150 mm
Flat / Square Container Height	58 mm to 240 mm
Flat / Square Container Other Heights	Available with suitable change parts
No Container No Cap System	Yes
Machine Body	SS, Elegant Matt Finish
Drive System	Single Motor Synchronizes Conveyor & Star Wheel
Conveyor Height Adjustment	Adjustable
Sealing Pressure	Adjustable according to Cap Gauge & Size
Noise Level	Low Noise Operation
Power Consumption	Low Power Consumption
Conveyor Guide Profile	Self-Lubricating UHMW-PE
Conveyor Operation	Low-Friction, Smooth & Noiseless
Exposed Parts	SS Cladding / Hard Chrome Plating
Corrosion Protection	Yes
Drive Synchronization	Synchronized AC Drives
Synchronized Components	Conveyor, Star Wheel, Platform Turret & Capping Bowl
Bottle Height Adjustment	Adjustable Bottle Height Gauge
Electrical Supply Requirement	1 Phase + Neutral + Earthing
Electrical Load	1.5 HP
Output Disclaimer	Output depends on bottle size, cap size and type of cap
Customization	Equipment can be supplied as per customer requirements
Change Parts	Required for different container and cap sizes
