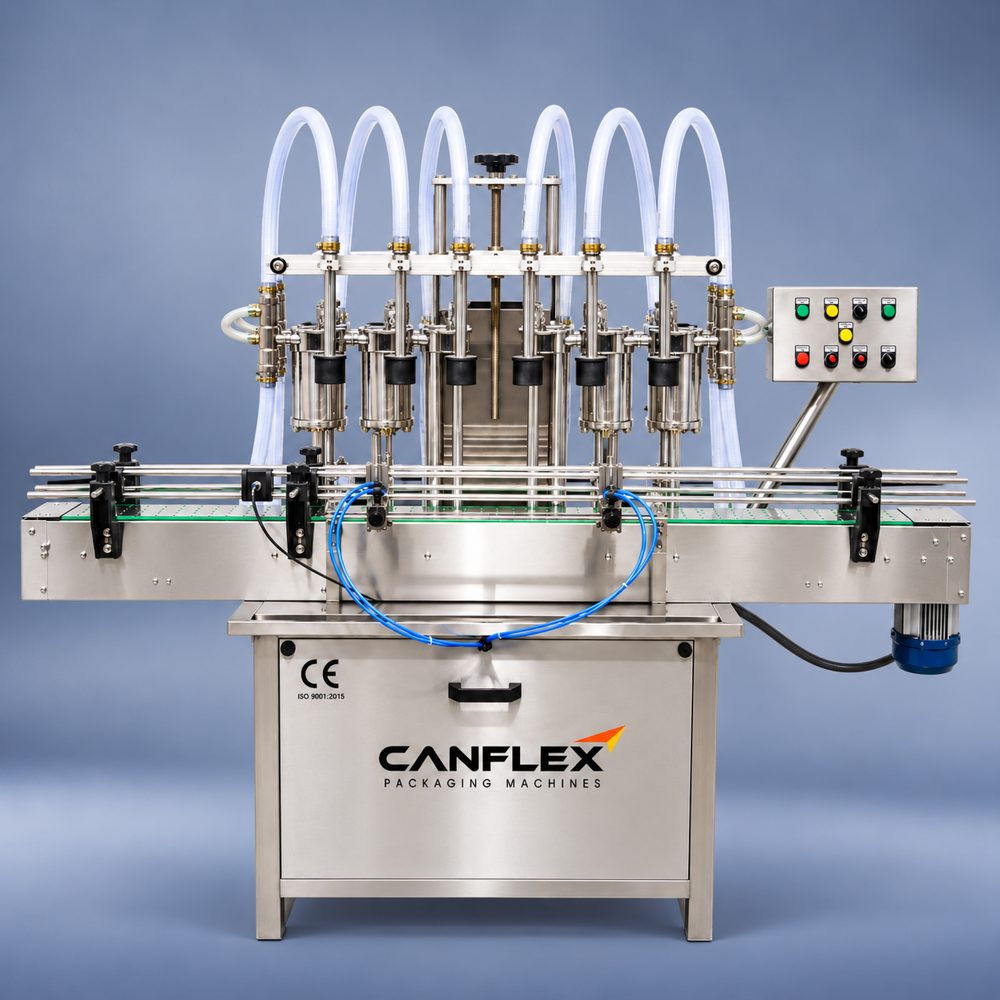

Automatic bottle filling machine volumetric (6 head)
588007.0 INR/Number
Product Details:
- Product Type Bottle/container filling machines
- Material SS304
- Application Chemical, Medical, Beverage
- Packaging Material Glass, Metal, Plastic
- Computerized Yes
- Automatic Grade Automatic
- Control System PLC Control
- Click to view more
X
Automatic bottle filling machine volumetric (6 head) Price And Quantity
- 1 Number
- 588007.0 INR/Number
Automatic bottle filling machine volumetric (6 head) Product Specifications
- Other
- Glass, Metal, Plastic
- 5 kilovolt (kV)
- Yes
- 1 YEAR
- Automatic
- 30-70 Pcs/min
- 8 feet length x 5 feet width x 6 feet height Foot (ft)
- 550 Kilograms (kg)
- PLC Control
- Silver
- High Performance, High Efficiency, Stable Performance, Simple Control
- Chemical, Medical, Beverage
- SS304
- Bottle/container filling machines
Automatic bottle filling machine volumetric (6 head) Trade Information
- Telangana, India
- 10 Number Per Month
- 30 Days
- Asia, Middle East, Africa
- All India
- Trade marked, ISO certififed, Member of Federation of Indian Export Organisation
Product Description
The Automatic Volumetric Liquid Filling Machine delivers accurate, consistent filling for liquids using diving nozzles and a volumetric system. Its stainless-steel construction ensures durability, while the no-container-no-filling system minimizes wastage. Supporting 50- 1000 ml filling capacities with change parts, it achieves output of 25-70 BPM, depending on the filling volume, for efficient production.
Pan-India service and spares, customisation available.
Applications: Liquids and viscous products, juices, mineral water, chemicals
Features: Precision Diving Nozzles Synchronized Conveyor System
| Technical Specification | Details |
|---|---|
| Filling Range | 100 ml to 1000 ml |
| Output 100 ml | Up to 70 BPM |
| Output 1 L | Up to 30 BPM |
| Filling System | Servo with Gear Pump |
| Direction of Movement | Left to Right |
| Number of Filling Heads / Syringes | 6 Nos. |
| Electrical Supply Machine | 230 V / 50 Hz |
| Conveyor Motor | 0.5 HP / 415 V / 50 Hz |
| Conveyor AC Drive | 0.5 HP |
| Filling Accuracy | 0.10.2% |
| Tank Capacity | Approx. 200 L |
| Conveyor Dimensions | 8 ft L 100 mm W 750 mm H |
| Machine Dimensions | 8 ft L 5 ft W 6 ft H |
| Net Weight | Approx. 550 kg |
| Container Neck Diameter | Minimum 22 mm |
| Round Container Diameter | 28 mm to 100 mm |
| Round Container Height | 58 mm to 240 mm |
| Round Container Other Heights | Available with suitable change parts |
| Flat / Square Container Length | 15 mm to 100 mm |
| Flat / Square Container Width | 10 mm to 50 mm |
| Flat / Square Container Height | 58 mm to 240 mm |
| Flat / Square Container Other Heights | Available with suitable change parts |
| Change Parts | Required for different container sizes / fill sizes |
| Filling Accuracy Single Dose | 1% |
| No Bottle No Filling System | Yes |
| Contact Parts | SS 316 / SS 304 |
| Machine Construction | Rigid, Vibration-Free Construction |
| Machine Body | SS, Elegant Matt Finish |
| Changeover | Minimum Changeover Time for Different Container Sizes / Fill Sizes |
| Conveyor Guide Profile | Self-Lubricating UHMW-PE |
| Conveyor Chain | SS Slat Chain |
| Conveyor Operation | Low-Friction, Smooth & Noiseless |
| Bottle Stopping System | Pneumatically Operated |
| Main Motor & Conveyor Drive | Synchronized AC Drives |
| Safety Guards | Conveyor Gearbox, Motor & Pneumatic Cylinders |
| Electrical Protection | Overcurrent, Voltage Fluctuation & Short-Circuit Protection |
| Machine Design | GMP Model |
| Electrical Supply Requirement | 3 Phase + Neutral + Earthing |
| Electrical Load Main Specification | 5 kW |
| Utility Electrical Supply Requirement | 1 Phase + Neutral + Earthing |
| Utility Electrical Load | 1 kW |
| Compressed Air Pressure | 6 Bar |
| Compressed Air Consumption Main Specification | 10 CFM |
| Utility Compressed Air Consumption | 0.5 CFM |
| Output Disclaimer | Output depends on container size, fill size, neck diameter and nature of liquid |
| Customization | Equipment can be supplied as per customer requirements |
