Base hopper with screw conveyor
250000.0 INR/Piece
Product Details:
- Usage Powders, FMCG, Pharma, Nutraceuticals, Agro products
- Features Base hopper handling bin, incline screw conveyor, adjustable height, customisable according to your product
- Power Supply 3 PHASE
- Application Spices, flour, milk powder, coffee powder, agro chemicals, industrial powders
- Filling Range Up to 5 kg
- Type Filling Machine
- Material SS304
- Click to view more
X
Base hopper with screw conveyor Price And Quantity
- 1 Number
- 250000.0 INR/Piece
Base hopper with screw conveyor Product Specifications
- 1 kilovolt (kV)
- 3 PHASE
- 300 L X 300 H Meter (m)
- Heavy Duty Machine, Durable, Highly Efficient
- 440 Volt (v)
- No
- PLC Control
- Base hopper handling bin, incline screw conveyor, adjustable height, customisable according to your product
- Silver
- 1 YEAR
- 5 Pcs/min
- Powders, FMCG, Pharma, Nutraceuticals, Agro products
- Automatic
- Filling Machine
- SS304
- Spices, flour, milk powder, coffee powder, agro chemicals, industrial powders
- Up to 5 kg
- Other
- 400 Kilograms (kg)
Base hopper with screw conveyor Trade Information
- Telangana, India
- 20-30 Number Per Month
- 20 Days
- Africa, Western Europe, Middle East, Asia, Eastern Europe
- All India
- Trade marked, ISO certififed, Member of Federation of Indian Export Organisation
Product Description

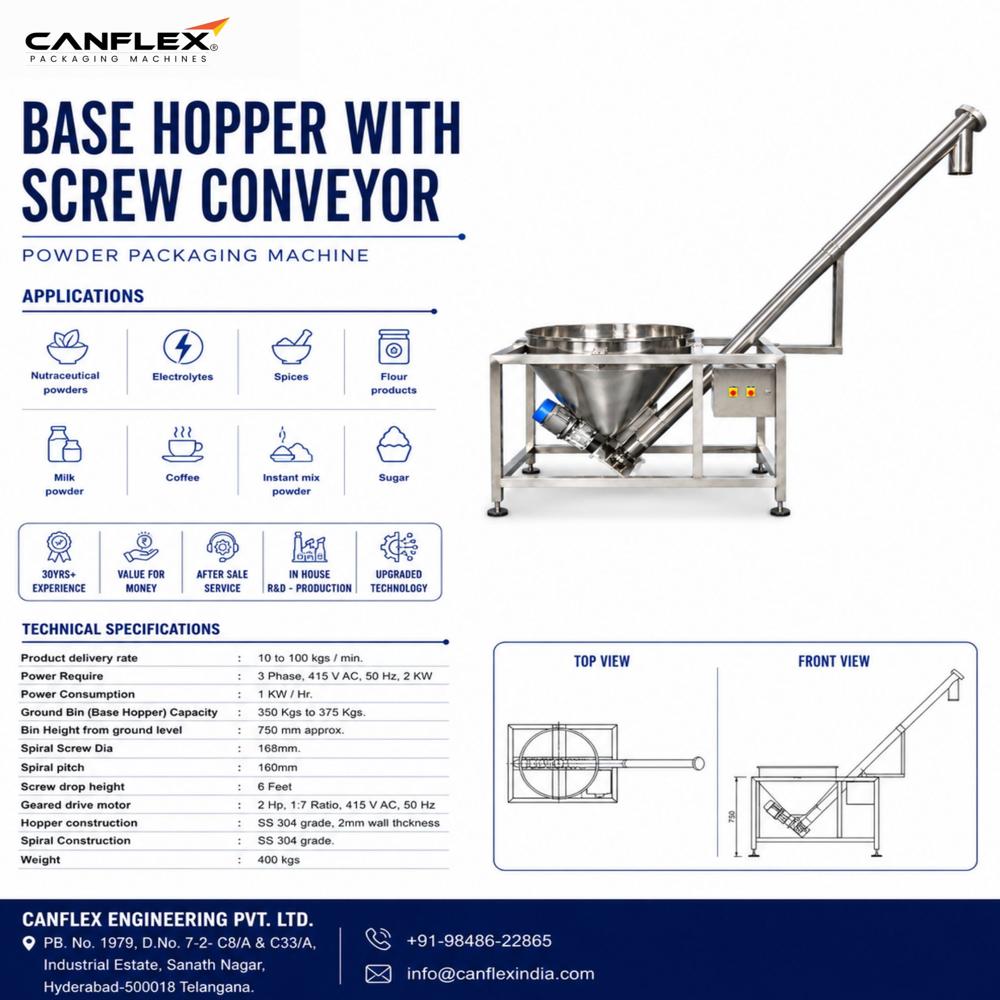

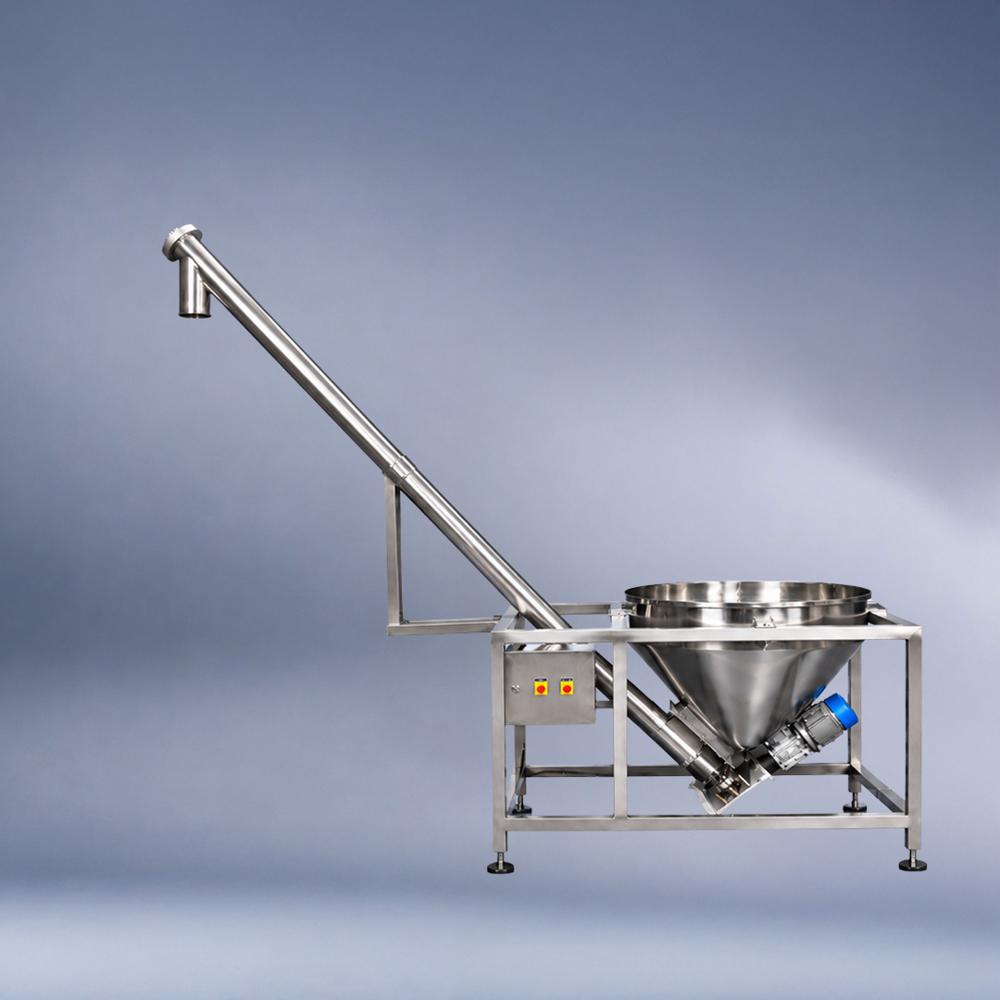

Inclined Screw Conveyor with base hopper system designed for efficient powder transfer to the packaging machine. It includes a ground-level hopper mounted on a heavy-duty angular structure, with a screw conveyor driven by a suitable geared motor. Equipped with a level sensor, the system automatically communicates with the filler hopper, ensuring continuous product feeding, smooth operation, and reliable material handling. Also available with trunch conveyor for ice cubes/tube ice/ ice chips
Applications: Spices, flour, milk powder, coffee powder, agro chemicals, industrial powders
Features: Hopper capacity up 400kg 1kg5kg fill capacity range Stainless steel contact parts
Specifications:
1. Product delivery rate : 100 to 130 kg&/ min.
2. Power Require : 3 Phase, 440 V AC 50 Hz, 2 KW
3. Power Consumption : 1 KW /Hr.
4. Ground Bin (Base Hopper) Capacity : 350 Kgs to 375 Kgs.
5. Bin Height from ground level : 750 mm approx.
6. Spiral Screw Dia. : 168mm.
7. Spiral pitch : 160mm
8. Screw drops height : 6 Feet
9. Geared drive motor : 2 Hp / 3 phases, 415 V, AC 50 Hz.
10 .Hopper construction : SS 304 grade, 2mm wall thickness
11. Spiral Construction : SS 304 grade.
12. Weight ` : 400 kgs
