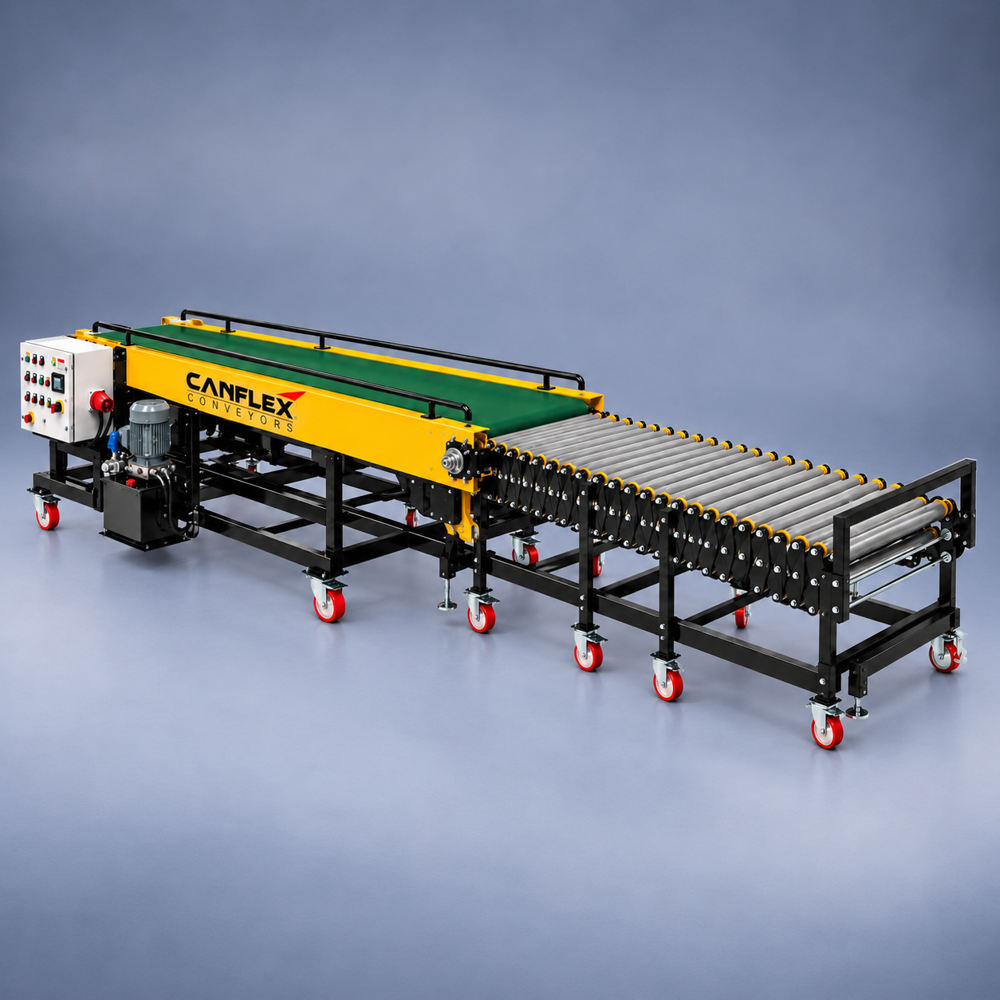

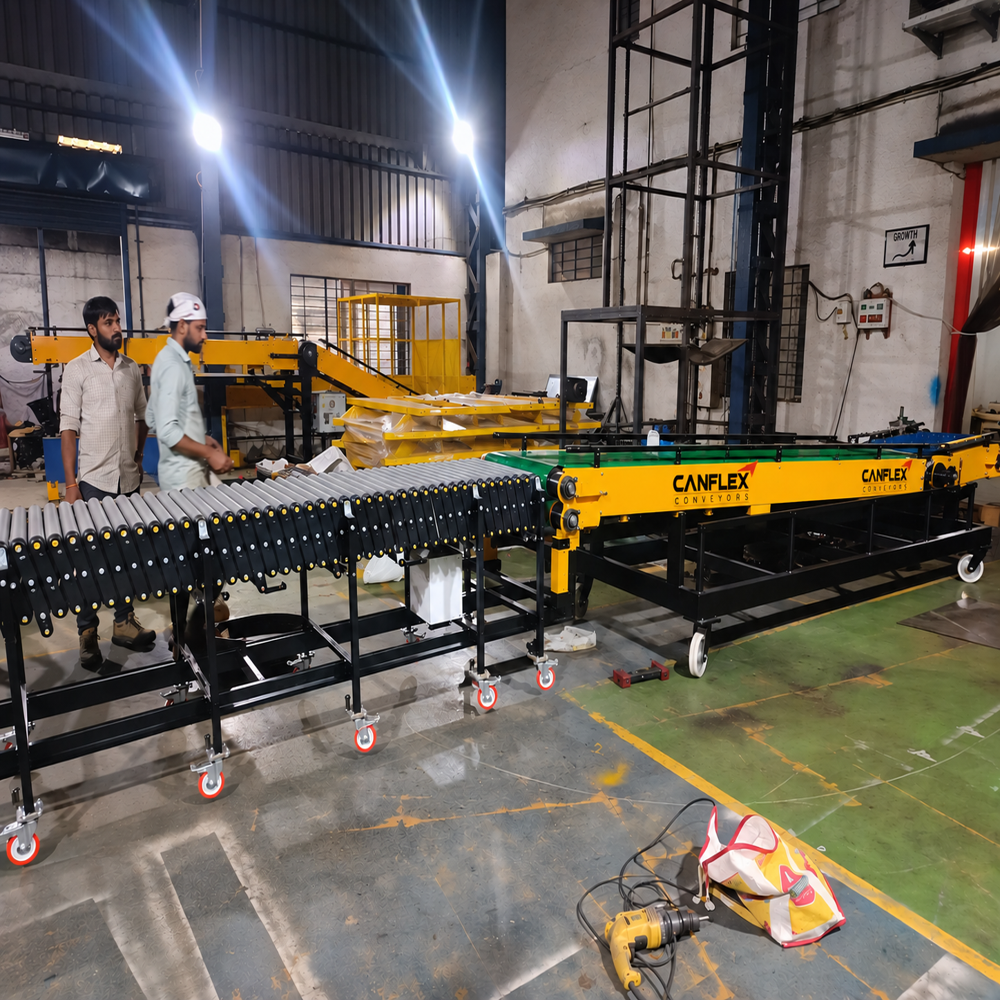

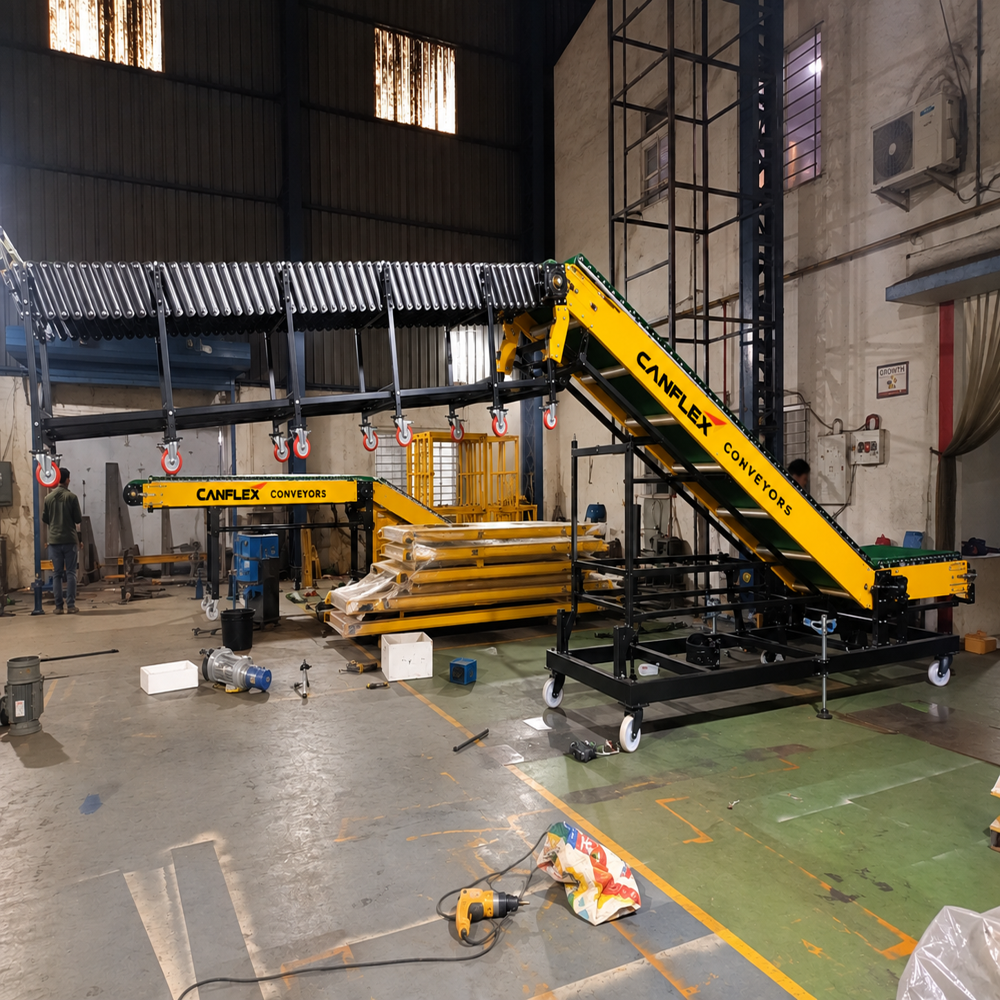

Truck loading Conveyor
999997.0 INR/Piece
Product Details:
- Usage Loading materials into transportation vehicles
- Application Loading materials into transportation vehicles
- Features Multi-Shape Container Labelling No Change Parts Required High-Speed Performance
- Filling Range 50KG/MIN
- Power Supply 3 phase
- Type Auxiliary Packaging Machine
- Feature Durable, Highly Efficient, Heavy Duty Machine
- Click to view more
X
Truck loading Conveyor Price And Quantity
- 999997.0 INR/Piece
- 1 Number
Truck loading Conveyor Product Specifications
- Frequency Speed Control
- 800 Kilograms (kg)
- Electric
- 1 YEAR
- 3 phase
- Loading materials into transportation vehicles
- Automatic
- Yes
- Multi-Shape Container Labelling No Change Parts Required High-Speed Performance
- 50KG/MIN
- Durable, Highly Efficient, Heavy Duty Machine
- 8400 (L) 600 (W) 800 2550 Millimeter (mm)
- 440 Volt (v)
- 3000 Kg/hr
- Auxiliary Packaging Machine
- 440 Volt (v)
- Loading materials into transportation vehicles
Truck loading Conveyor Trade Information
- Telangana, India
- 30 Days
- Africa, Asia, Middle East
- All India
- Trade marked, ISO certififed, Member of Federation of Indian Export Organisation
Product Description
The Flat Belt Assembly Line Conveyor is designed for efficient material handling across manufacturing and logistics operations. It enables smooth transportation of diverse materials while reducing manual handling, operator fatigue, damage, and waste. Customizable for specific applications, the conveyor supports automation, online weighing, barcode scanning, and mobile or stationary configurations.
Applications: Loading materials into transportation vehicles.
Features: Multi-Shape Container Labelling No Change Parts Required High-Speed Performance.
| Technical Specification | Details |
|---|---|
| Machine Model | Truck Loader 8.4 Mtr |

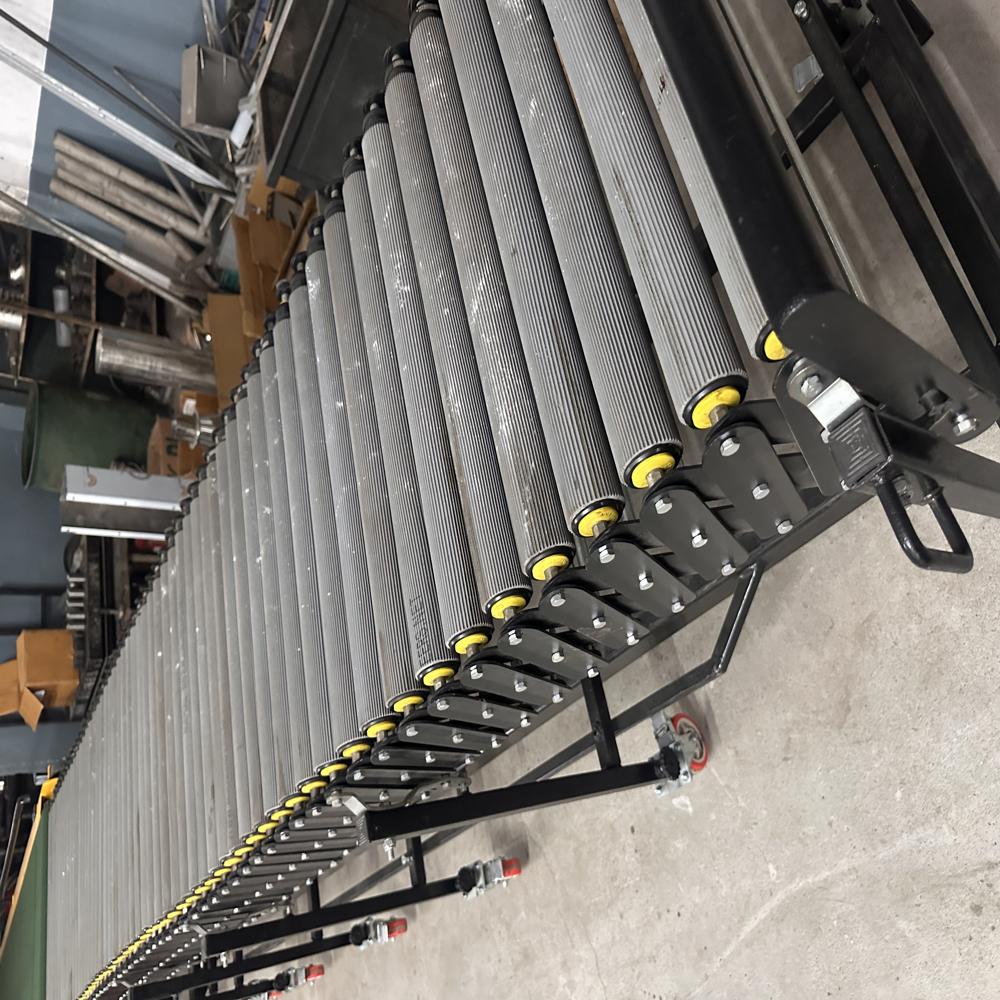

| Conveyor Type | Flexible Motorised Roller Type |
| Conveyor Width | 600 mm |
| Total Conveyor Length | 8400 mm |
| Horizontal Length | 900 mm |
| Incline Length | 3000 mm |
| Motorised Conveyor Closed Length | 3000 mm |
| Motorised Conveyor Expanded Length | 4500 mm (Inside Truck) |
| Motorised Roller Diameter | 50 mm |
| Roller Pitch | 90 mm |
| Roller Sleeve | Provided for improved material grip |
| Roller Motor | 4 to 5 Nos., 90V |
| Roller Link Belt | Multiple V or O-Ring Belt |
| Feeding Height | 800 mm from ground level |
| Discharge Height | 8002550 mm, adjustable |

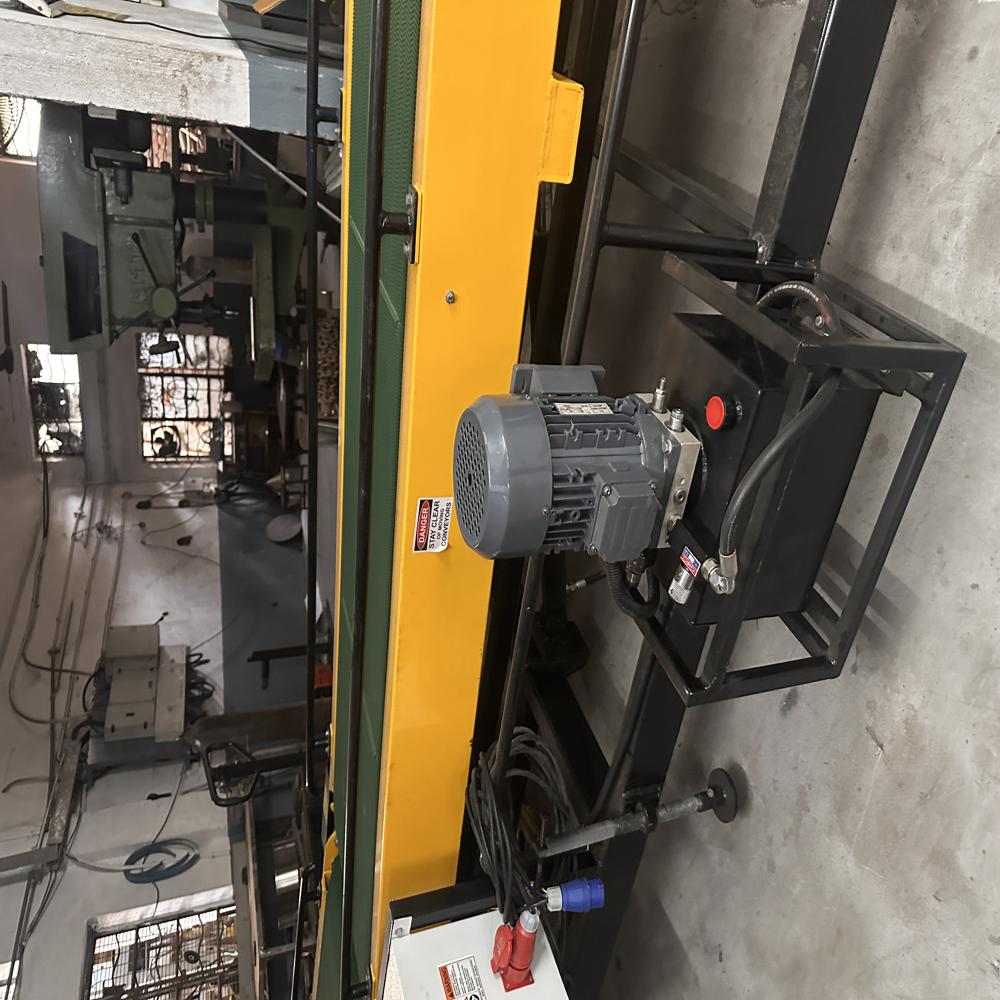

| Height Adjustment | 1 Hydraulic Cylinder with 1.5 HP Power Pack |
| Incline Belt | Rough Top PVC Belt |
| Load Capacity | 50 kg/m |
| Material / Component Handled | Boxes |
| Maximum Box Size | L 600 W 500 H 500 mm |
| Structure | Fabricated Channel |
| Gear Box | Altra Premium / Translo |
| Main Drive Motor | 2 HP, CGL / BBL / Translo |
| Power Supply | 440 VAC, 3 Phase |
| Speed Control | VFD (Variable Frequency Drive) |
| Conveyor Speed | 2025 m/min |
| Box Counting System | Box counting sensor with 1-inch display board |
| Wheels | 2 Swivel + 2 Fixed, with Brakes |

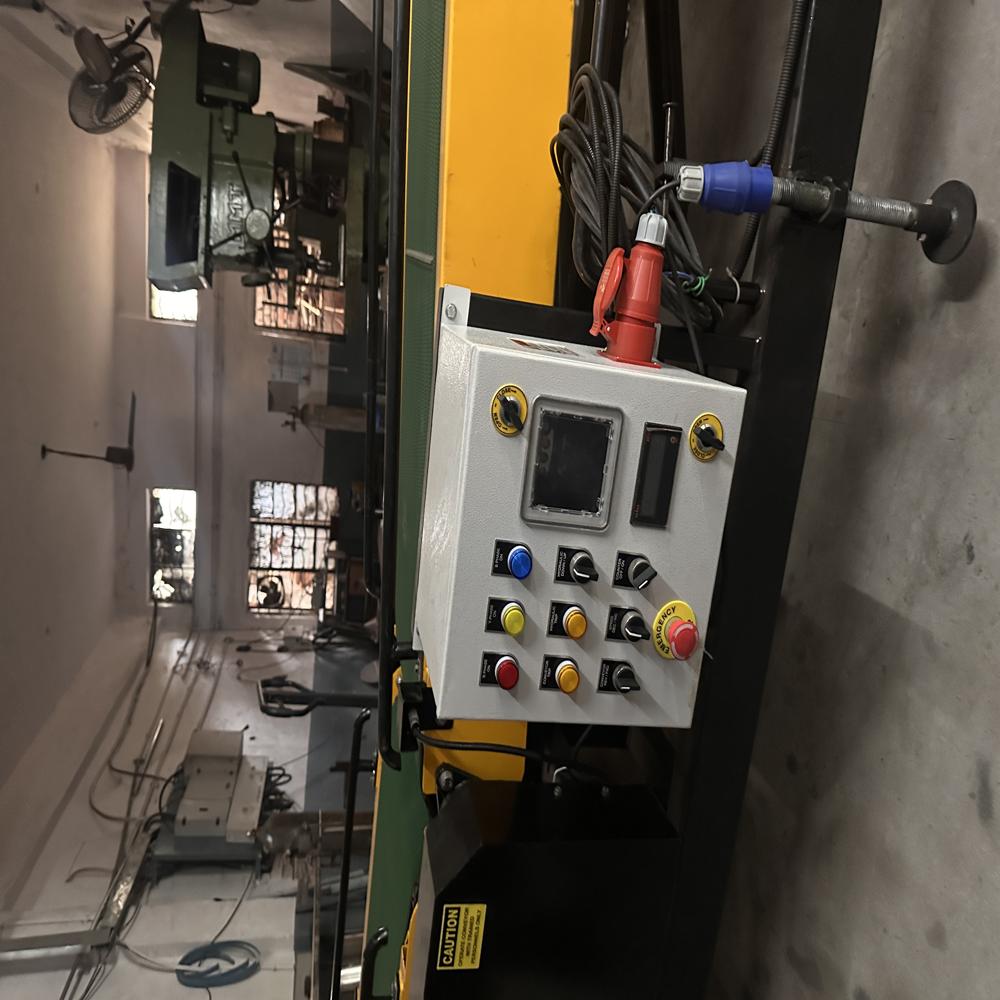

| Control Panel | Suitable Control Panel |
| Direction | Forward / Reverse |
| Colour | Golden Yellow RAL 1003 |
| Finish | Powder Coated |
