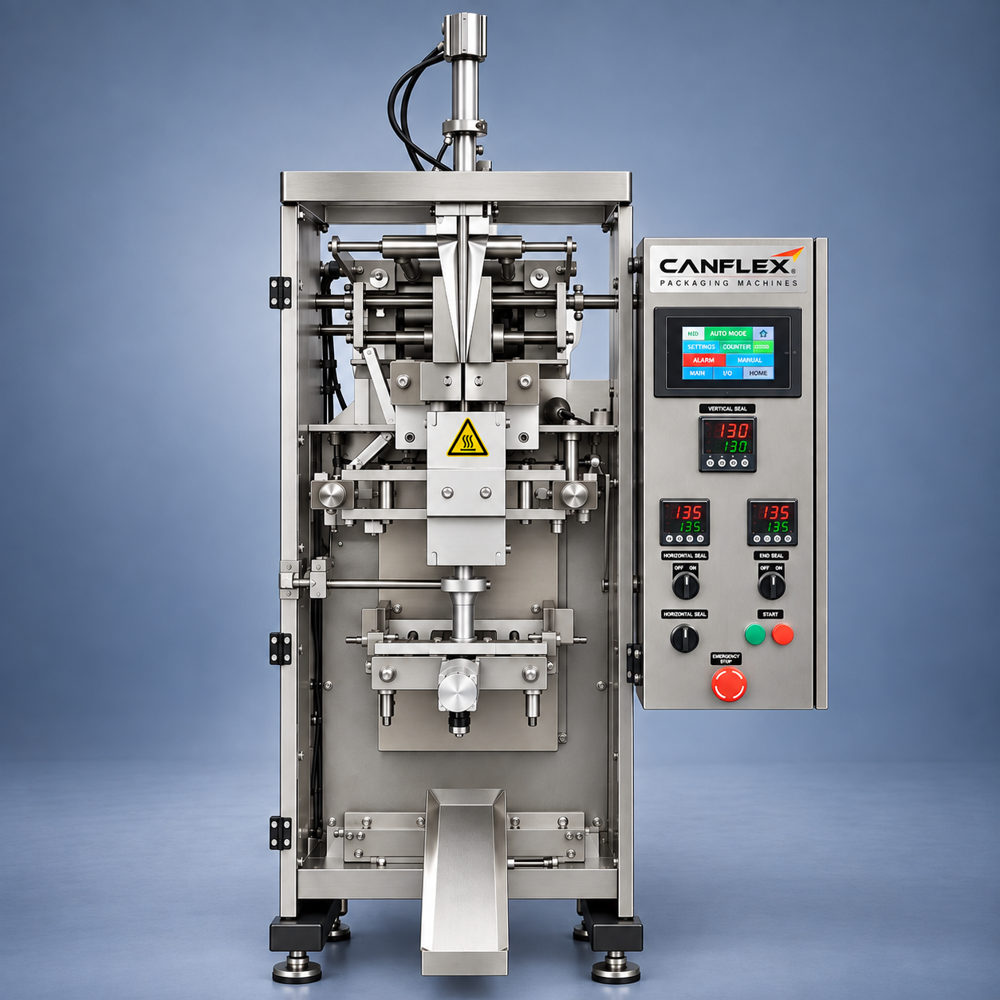

30ml Liquid Sachet Packing Machine

Product Description

The Automatic Liquid Packing Machine is a compact and efficient VFFS liquid sachet packing machine designed for precise filling and sealing of liquids, single-use liquid products, Liquid IV, coffee decoction and other free-flowing liquid products. Its collar-type VFFS system forms, fills and seals convenient single-use stick pack sachets in a continuous packaging process.

Equipped with a pump operated filling system, the machine delivers controlled and accurate liquid dosing while helping maintain clean, drip-free filling and minimize product wastage. With a filling capacity of up to 30 ml, it is suitable for small-volume liquid sachets and stick packs.

The machine is ideal for businesses launching new products or expanding into single-use liquid sachet packaging. Its flexible pouch-format configuration can also be customized for applications involving pastes, powders and granules, depending on the required filling system and packaging format.

1. Feeding head : Pump Operated.
2. Production Speed : 20 to 30 pouches per min

 (Depending Up on Product)

1. Machine control system : PLC Control
2. Packing range : 1ml to 30ml.(Change of pumps)
3. Film Width : 61mm to 120mm. (Change of forming)
4. Pouch Width : 25mm to 50mm.
5. Pouch Length : up to 160mm.
6. Film Thickness : 60 100 microns.
7. Film Material : Laminated
8. Sealer heating system : Continues.
9. Inner Core Dia. of Film Roll : 70mm.
10. Outer Dia. of the film Roll : up to 300mm.

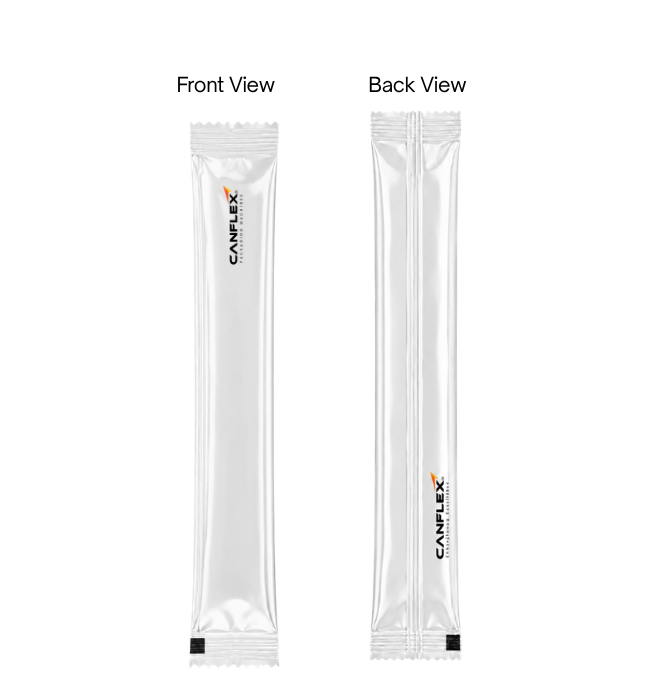

11. Pouch Style : Center Seal Pillow Type Pouch.
12. Batch Cutter                                  : Provider
13. Pneumatic air                       : 10CFM @ 7KG CM²
14. Power Consumption : 1.5 KW / Hour.
15. Peak Power : 2 KW.
16. Power requirement : Three Phase, 415 V, 50Hz
17. Pouch Counter : Provided.
18. Date printing Device : Optional.
19. Photo Cell : Provided.
20. Machine Dimensions in mm : 1900(H) x 710(W) x 1200(Depth) mm.
21. Net Weight : 500kgs (approx.).
