1 liter Liquid Pouch Packing Machine

350000.0 INR/Number

Get a Price/Quote

Product Details:

Application Milk, fruit juices, fruit pulps, syrup
Usage Liquids, Pharma liquids, Chemicals, Milk, fruit juices, fruit pulps, syrup
Power Supply Single phase
Filling Range Up to 1 liter
Features Float-balanced gravity dosing Gentle handling of delicate liquids Up to 1000ml capacity dairy products milk buttermilk
Type Packaging Line
Material STAINLESS STEEL
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

1 liter Liquid Pouch Packing Machine Price And Quantity

Price 350000.0 INR/Number
Minimum Order Quantity 1 Number

1 liter Liquid Pouch Packing Machine Product Specifications

Dimension (L*W*H) 1700(H) x 800(W) x 1200(Depth). Millimeter (mm)
Capacity 50 Pcs/min
Drive Type Other
Features Float-balanced gravity dosing Gentle handling of delicate liquids Up to 1000ml capacity dairy products milk buttermilk
Voltage 220 Volt (v)
Type Packaging Line
Usage Liquids, Pharma liquids, Chemicals, Milk, fruit juices, fruit pulps, syrup
Power Supply Single phase
Power 1.2 kilovolt (kV)
Sealing Type Other
Application Milk, fruit juices, fruit pulps, syrup
Weight (kg) 450 Kilograms (kg)
Warranty 1 YEAR
Color Silver
Computerized Yes
Material STAINLESS STEEL
Feature Highly Efficient, Heavy Duty Machine, Durable, Rust Proof
Control System PLC Control
Automatic Grade Automatic
Filling Range Up to 1 liter

1 liter Liquid Pouch Packing Machine Trade Information

FOB Port Telangana, India
Supply Ability 10 Number Per Month
Delivery Time 20 Days
Main Export Market(s) Middle East, Africa, Asia
Main Domestic Market All India
Certifications Trade marked, ISO certififed, Member of Federation of Indian Export Organisation

Product Description

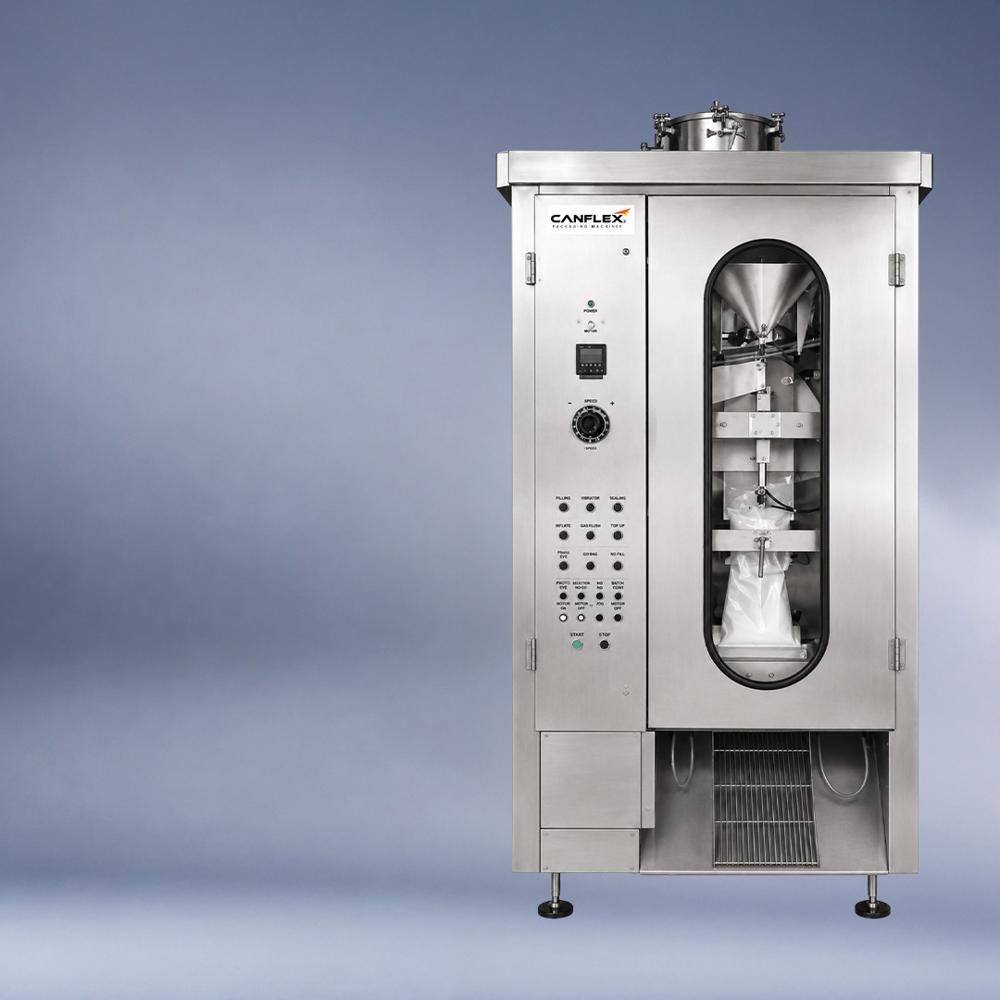

The Canflex 1000 L is a fully automatic, mechanically operated VFFS machine built for larger pouch formats up to 1000 ml.Single head open body fully automatic Mechanically operated vertical pouch form fill & seal machine to pack all free flowing liquids such as milk/ butter milk/ fruit pulp/ liquid softy ice cream mix with float balanced gravity flow filling system.

Applications: Milk, fruit juices, fruit pulps, syrup

Features: Float-balanced gravity dosing Gentle handling of delicate liquids Up to 1000ml capacity dairy products milk buttermilk

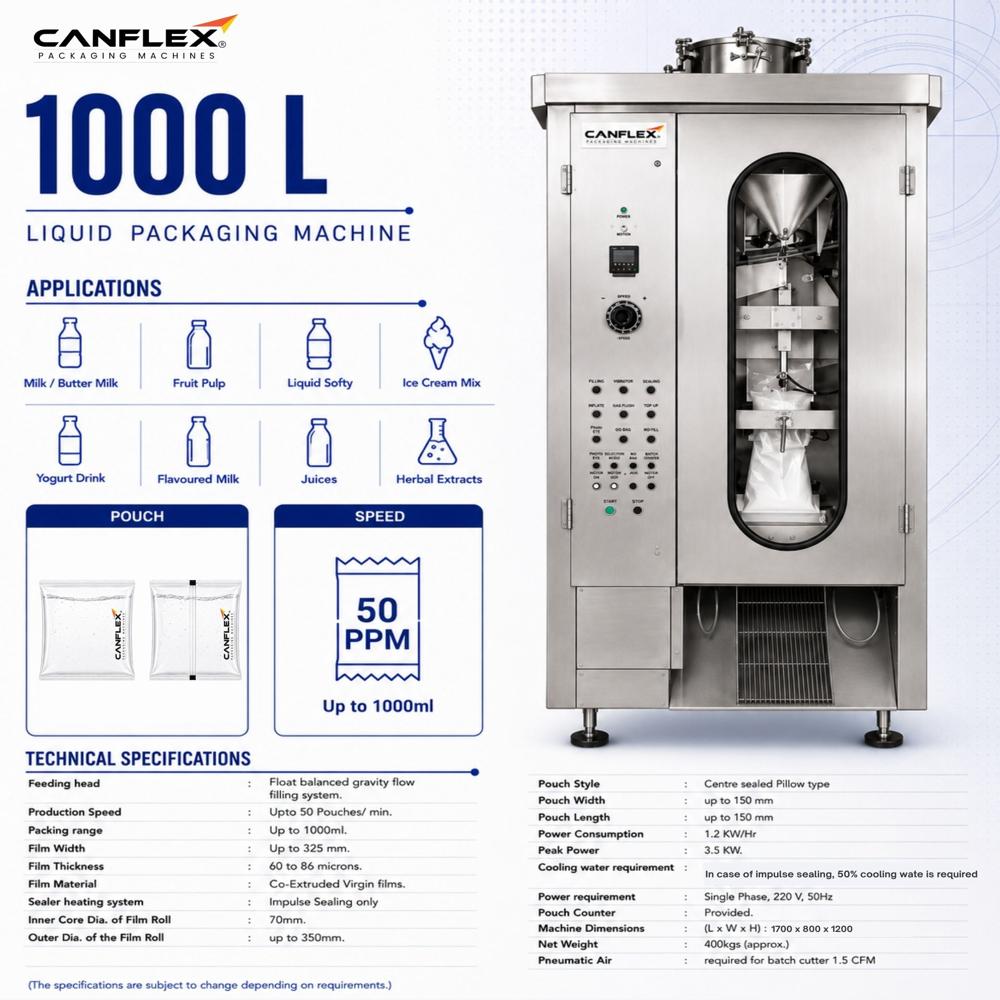

SPECIFICATIONS:

Feeding head Float balanced gravity flow filling system

Production Speed uptp 50 Pouches

Packing range up to 1000ml

Film Width Up to 325 mm

Film Thickness 60 to 80 microns

Film Material Co-Extruded Virgin films

Sealer heating system Impulse Sealing only

Inner Core Dia. of Film Roll 70mm.

Outer Dia. of the film Roll up to 350mm.

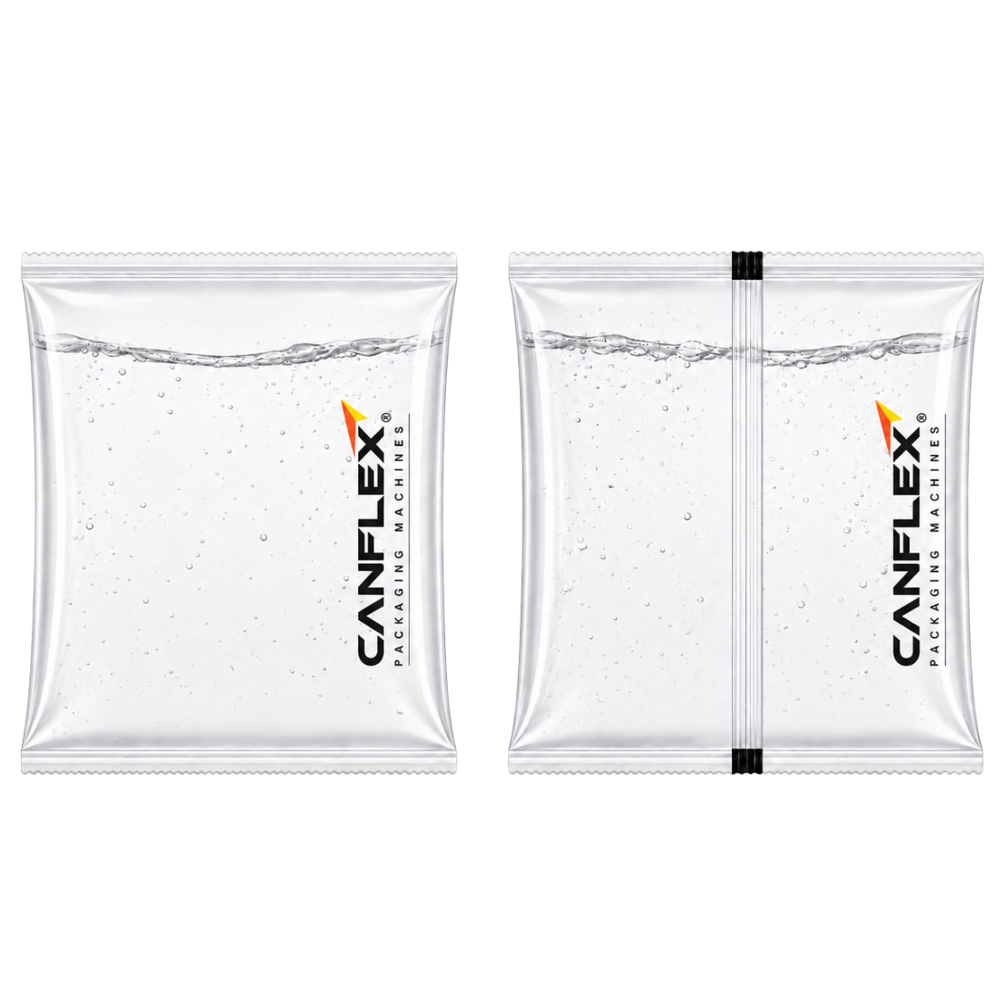

Pouch Style Centre sealed Pillow type

Pouch Width up to 150 mm

Pouch Length 160 mm

Power Consumption 1.2 KW/Hr.

Peak Power 3.5 KW.

Cooling water requirement

In case of impulse sealing, 50% cooling water is required.

Power requirement Single Phase, 220 V, 50Hz

Pouch Counter Provided

Machine Dimensions 1700(H) x 800(W) x 1200(Depth)mm

Net Weight 450kgs (approx.)
Pneumatic Air : required for batch

cutter 1.5 CFM
