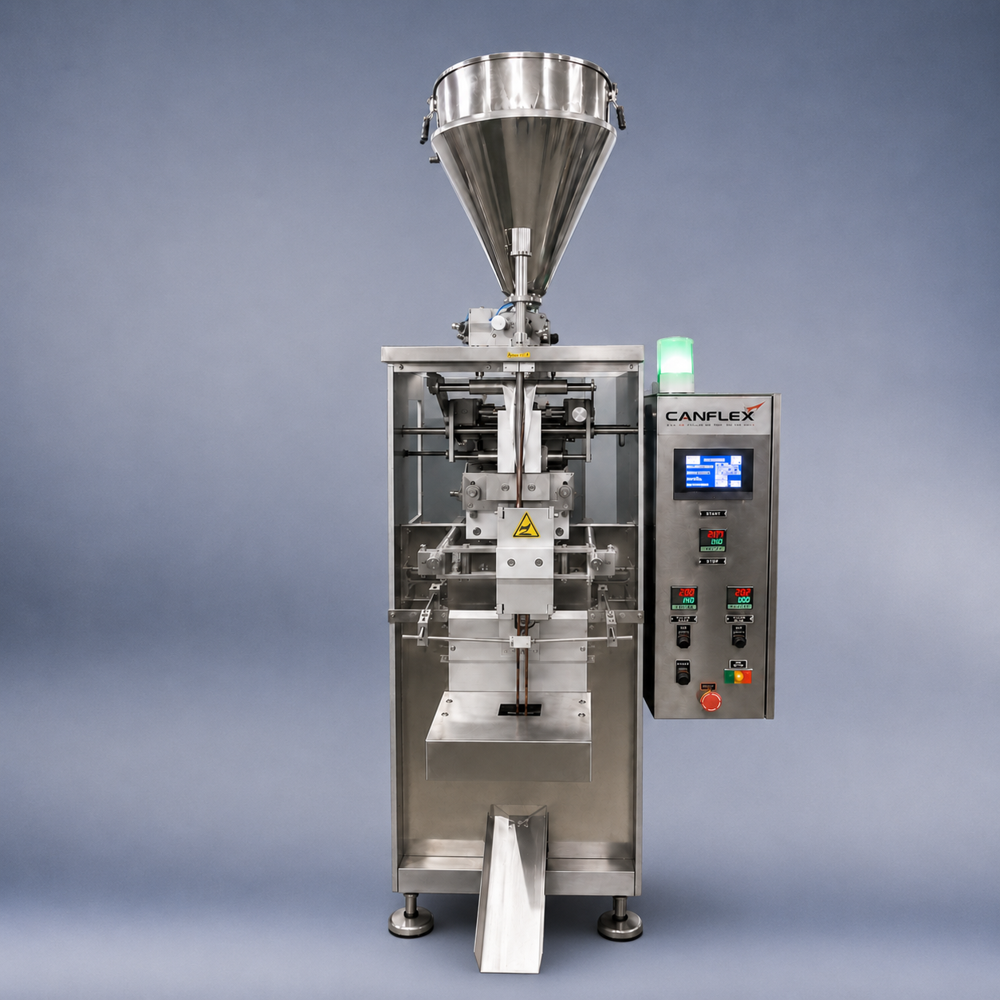

Stick Pack machine for paste

399997.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type Packaging Machinery
Material SS304
Application Chemical, Food, Beverage, Medical
Packaging Material Plastic
Computerized Yes
Automatic Grade Automatic
Control System PLC Control
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Stick Pack machine for paste Price And Quantity

Minimum Order Quantity 1 Number
Price 399997.0 INR/Unit

Stick Pack machine for paste Product Specifications

Material SS304
Color Silver
Product Type Packaging Machinery
Capacity 50 Pcs/min
Warranty 1 YEAR
Drive Type Pneumatic
Dimension (L*W*H) 2715(H) x 1000(W) x 1910(Depth) Millimeter (mm)
Packaging Material Plastic
Voltage 220 kilovolt (kV)
Weight (kg) 600 Kilograms (kg)
Computerized Yes
Automatic Grade Automatic
Feature Stable Performance, Simple Control
Application Chemical, Food, Beverage, Medical
Control System PLC Control

Stick Pack machine for paste Trade Information

FOB Port Telangana, India
Supply Ability 20-30 Number Per Month
Delivery Time 30 Days
Sample Available Yes
Main Export Market(s) Asia, Eastern Europe, Middle East, Africa, Western Europe
Main Domestic Market All India
Certifications Trade marked, ISO certififed, Member of Federation of Indian Export Organisation

Product Description

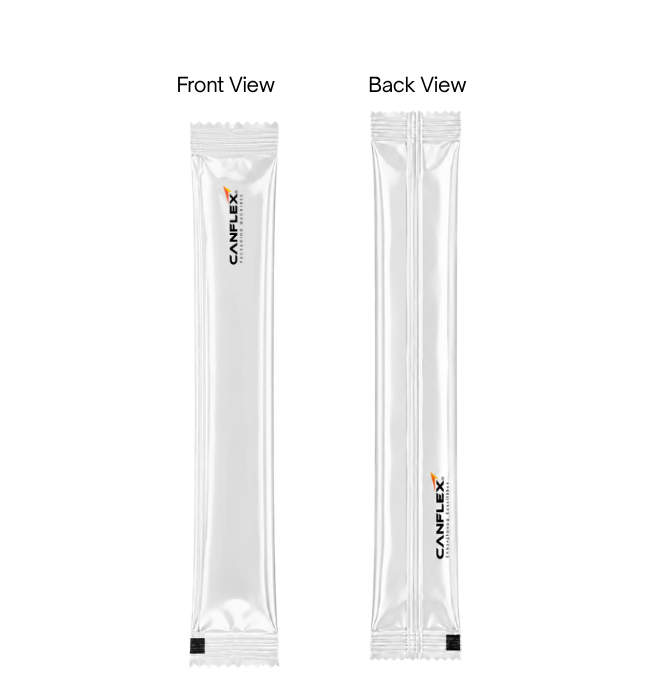

The Automatic Paste Packing Machine is designed for precise and efficient packaging of chocolate pastes, Nutella, candy fillings, and similar products. Its VFFS collar-type system produces convenient single-use stick-pack sachets. The compact machine is ideal for launching new products, while customizable pouch formats provide flexibility for packing pastes and granules across diverse applications.

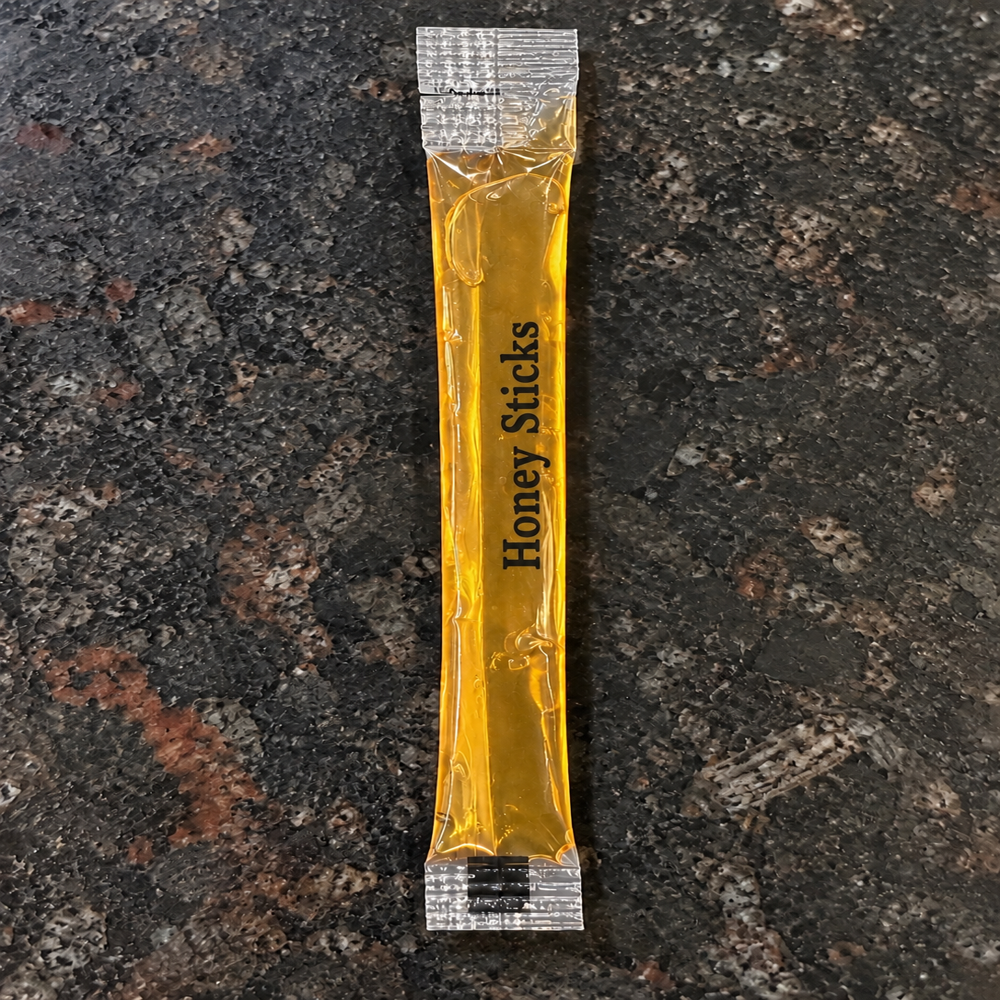

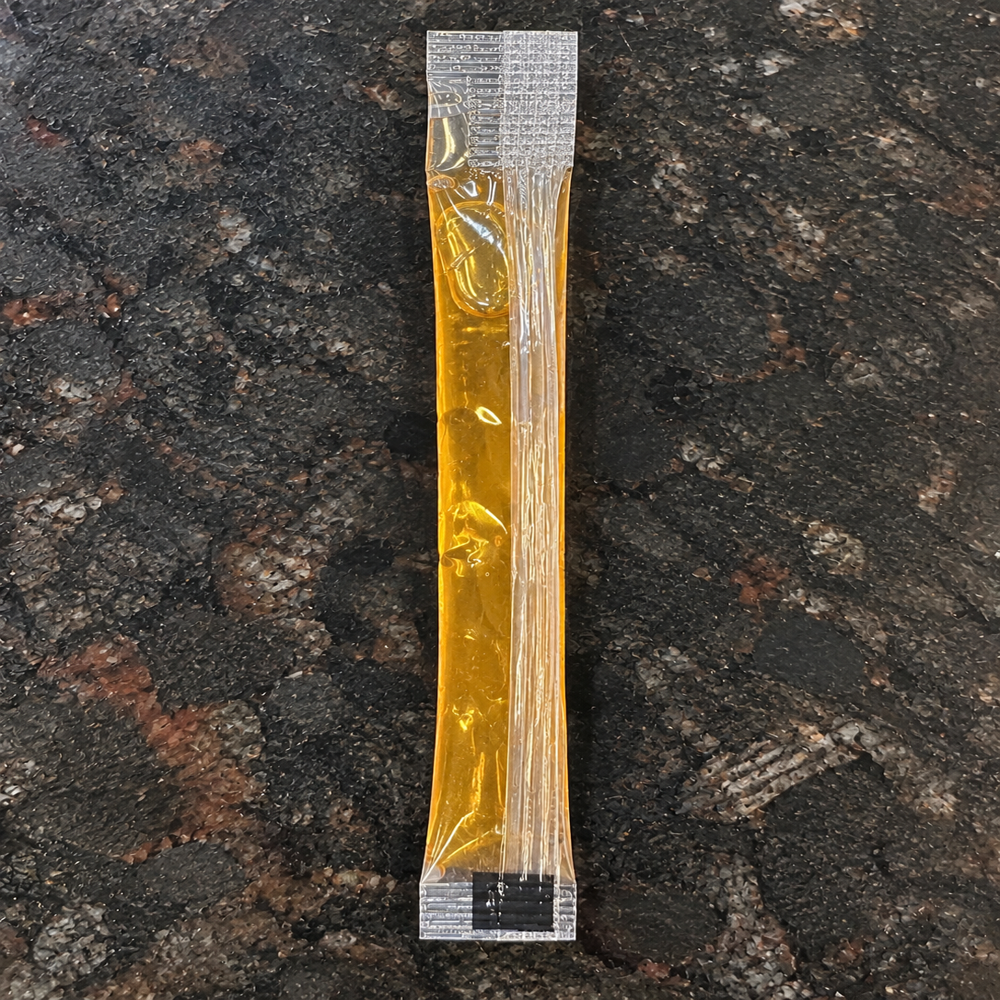

Applications: Chocolate candy, Honey, jam, jelly, paste, single use sachet, pastes, stick pack

Features: Pneumatic piston filling system Clean, drip-free filling Up to 200 ml capacity Minimizes product wastage

SPECIFICATIONS:

01. Feeding head : Pneumatic piston filling system.

02. Production Speed : 35-40 pouches / minute.

03. Machine control system : Digital Control System.

04. Packing range : 10 grams to 20 grams.

05. Film Width : Up to 120mm.

06. Pouch Width : Up to 60mm.

07. Pouch Length : Up to 150 mm.

08. Pouch Style : Three side Seal.

09. Film Thickness : Up to 90 microns.

10. Film Material : Laminated Film.

11. Sealer heating system : Continues.

12. Inner Core Dia. of Film Roll : 70mm.

13. Outer Dia. of the film Roll : up to 280mm.

14. Power Consumption : 1 kW / Hour.

15. Peak Power : 3 kW.

16. Pneumatic air : 6CFM@6kgcm2

16. Power requirement : Single Phase, 220 V, 50Hz plus Neutral.

17. Pouch Counter : Provided.

18. Photo Cell : Provided.

19. Batch Cutter : Provided on extra cost.

20. Machine Dimensions in mm : 2715(H) x 1000(W) x 1910(Depth).

21. Net Weight : 600kgs (approx.)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Paste Filling Machine' category

CANFLEX 1000 Lppsa Semi Automatic Paste Packaging Machines Price : 15000.0 INR/Unit Minimum Order Quantity : 1 Drive Type : Pneumatic Warranty : 1 YEAR Capacity : up to 1 Kg Product Type : paste Color : Silver Material : SS304 Control System : PLC Control Application : Edible oils, cooking oil, industrial/lubricant oils, liquids, gingergarlic paste, sauces, ketchup, jam, jelly, adhesives, tamarind paste, and pickles. Feature : High Performance, Lower Energy Consumption, High Efficiency, Stable Performance, Simple Control, ECO Friendly, Low Noise Automatic Grade : Automatic Computerized : Yes Voltage : 220 Volt (v) Weight (kg) : 600 Kilograms (kg) Dimension (L*W*H) : 1850H 1000w 1000H Millimeter (mm) Packaging Material : Other Power : 3 kilovolt (kV) Type : Packaging Line

Send Inquiry

Tomato Sauce Pouch Packing Machine Price : 300000.0 INR/Unit Minimum Order Quantity : 1 Drive Type : Pneumatic Warranty : 1 Year Capacity : 45 Pcs/min Product Type : Tomato Sauce Pouch Packing Machine Color : Other Material : Stainless Steel Control System : PLC Control Application : Food Feature : ECO Friendly, Lower Energy Consumption, High Efficiency Automatic Grade : Automatic Computerized : No Voltage : 220 Volt (v) Weight (kg) : 300 Kilograms (kg) Dimension (L*W*H) : 2715(H) x 1000(W) x 1910(Depth). Millimeter (mm) Packaging Material : Plastic Power : SINGLE PHASE Volt (v) Type : Other

Send Inquiry

Ginger Garlic Paste Packing Machine Price : 250000.00 INR/Unit Minimum Order Quantity : 1 Drive Type : Electric Warranty : 1 Year Capacity : 20 Ltr Product Type : Paste Packing Machine Color : Other Material : Stainless Steel Control System : PLC Control Application : Food Feature : ECO Friendly, Lower Energy Consumption, High Efficiency Automatic Grade : Automatic Computerized : Yes Voltage : 220 Volt (v) Weight (kg) : 600 Kilograms (kg) Dimension (L*W*H) : 2715(H) x 1000(W) x 1910(Depth) Millimeter (mm) Packaging Material : Plastic

Send Inquiry

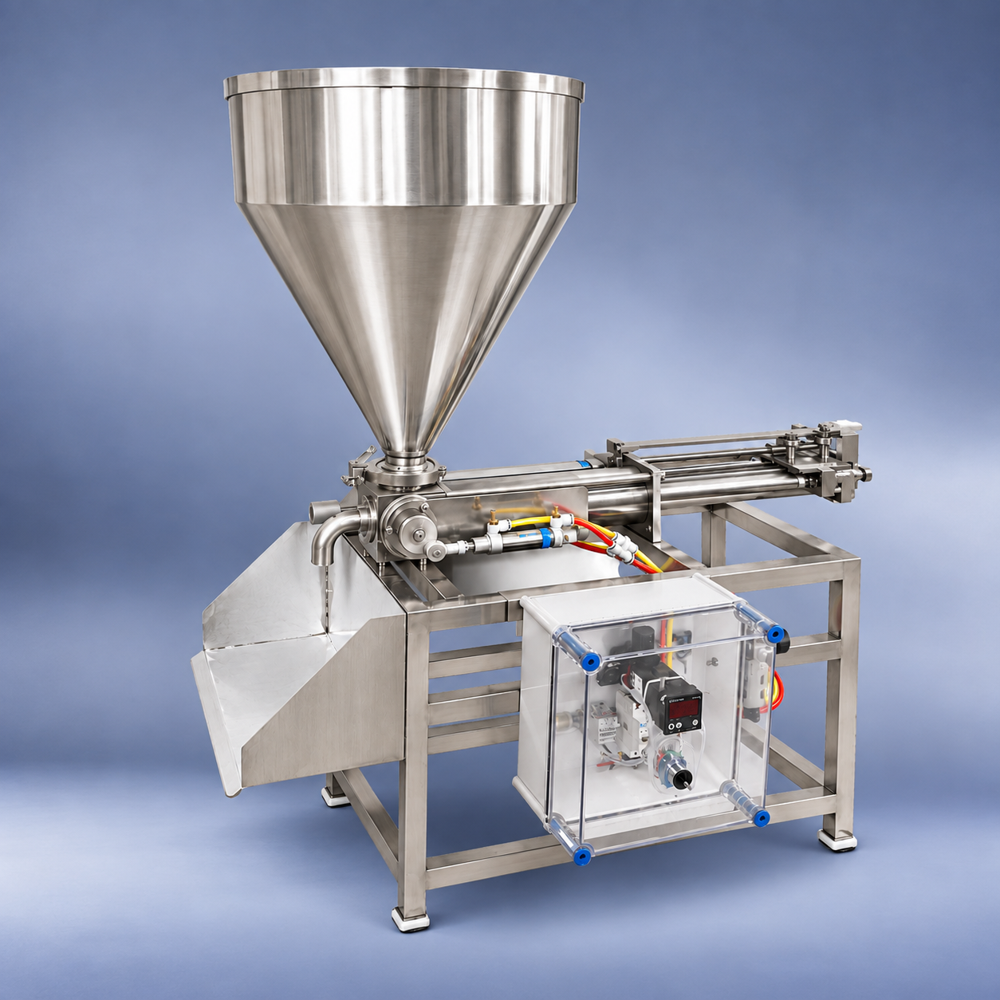

Semi Automatic Filling Machine Price : 150000.0 INR/Unit Minimum Order Quantity : 1 Drive Type : Pneumatic Warranty : 1 Year Capacity : 45 Ltr Product Type : Semi Automatic Filling Machine Color : Other Material : Stainless Steel Control System : PLC Control Application : Food, Beverage, Chemical Feature : Lower Energy Consumption, High Efficiency, Stable Performance Automatic Grade : SemiAutomatic Computerized : No Voltage : 230 Volt (v) Weight (kg) : 150 Kilograms (kg)
