CANFLEX 200 4S Dh Pouch Packing Machine

Name: CANFLEX 200 4S Dh Pouch Packing Machine
Brand: CANFLEX ENGINEERING PVT. LTD.
Price: 500000.00 INR
Availability: InStock

500000.00 INR/Unit

Get a Price/Quote

Product Details:

Usage Dairy Industry Beverage Industry Fruit Processing Industry Food Processing Industry Ice Cream Industry Liquid Food Industry FMCG Industry Contract Food Manufacturing
Features Twin-head simultaneous filling Pump-operated dosing accuracy Fully automatic mechanical VFFS High output, space-efficient footprint
Power Supply Single phase
Application Juice, fruit pulp, milk, buttermilk, flavored beverages, ice candy (up to 200ml per pouch)
Filling Range Up to 200ml
Type Packaging Line
Material Stainless Steel
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

CANFLEX 200 4S Dh Pouch Packing Machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 500000.00 INR/Unit

CANFLEX 200 4S Dh Pouch Packing Machine Product Specifications

Voltage 450 Volt (v)
Power Supply Single phase
Application Juice, fruit pulp, milk, buttermilk, flavored beverages, ice candy (up to 200ml per pouch)
Dimension (L*W*H) Height 1500 x Width 1900 x Length 1050 Millimeter (mm)
Features Twin-head simultaneous filling Pump-operated dosing accuracy Fully automatic mechanical VFFS High output, space-efficient footprint
Computerized No
Power 2 kilovolt (kV)
Sealing Type Heat Sealing
Usage Dairy Industry Beverage Industry Fruit Processing Industry Food Processing Industry Ice Cream Industry Liquid Food Industry FMCG Industry Contract Food Manufacturing
Control System PLC Control
Type Packaging Line
Feature Highly Efficient, Less Power Consumable
Capacity 50 Pcs/min
Color Silver
Filling Range Up to 200ml
Automatic Grade Automatic
Warranty 1 Year
Weight (kg) 600 Kilograms (kg)
Material Stainless Steel
Drive Type Other

CANFLEX 200 4S Dh Pouch Packing Machine Trade Information

FOB Port Telangana, India
Supply Ability 50 Unit Per Month
Delivery Time 30 Days
Packaging Details Trade marked, ISO certififed, Member of Federation of Indian Export Organisation
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

Double Head Mechanically Operated Fully Automatic Form Fill & Seal Machine to pack liquids in heat sealable laminated poly pouches with pump operated feeding system. Suitable for packing fluid/viscous products such as oils, juices and other similar free flowing products. The machine is equipped with a 3 & 4 side sealing system.

Its durable and scalable design makes it a practical option for startups, testing new products in the market, or expanding production, with customization available to suit your specific packaging needs.

Applications: Juice, fruit pulp, milk, buttermilk, flavored beverages, ice candy (up to 200ml per pouch)

Features: Twin-head simultaneous filling Pump-operated dosing accuracy Fully automatic mechanical VFFS High output, space-efficient footprint

SPECIFICATION:

1. Feeding head : Pump operated feeding system.

2. Production Speed : upto 100 pouches per min.

3. Packing range : Up to 200ml.

4. Film Width : Up to 240 mm.

5. Film Thickness : 50 120 microns.

6. Film Material : Laminated Film.

7. Sealer heating system : Continuous.

8. Inner Core Dia. of Film Roll : 70mm.

9. Outer Dia. of the film Roll : up to 350mm.

10. Pouch Style : Three side and Four side sealing.

11. Pouch Width : up to 120 mm max.

12. Pouch Length : up to 190 mm max.

13. Power Consumption : 2.0kW / Hour.

14. Peak Power : 6 KW.

15. Power requirement : Single Phase 220 V 50Hz or 3 phase 415 V 50Hz

16. Pouch Counter : Provided.

17. Batch Cutter : Provided on extra cost.

18. Machine Dimensions in mm : Height 1500 x Width 1900 x Length 1050 mm.

19. Net Weight : 750 kgs (Approx.).

20. Pneumatic Air : Required for batch cutter 1.5 CFM

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Liquid Packaging Machinery' category

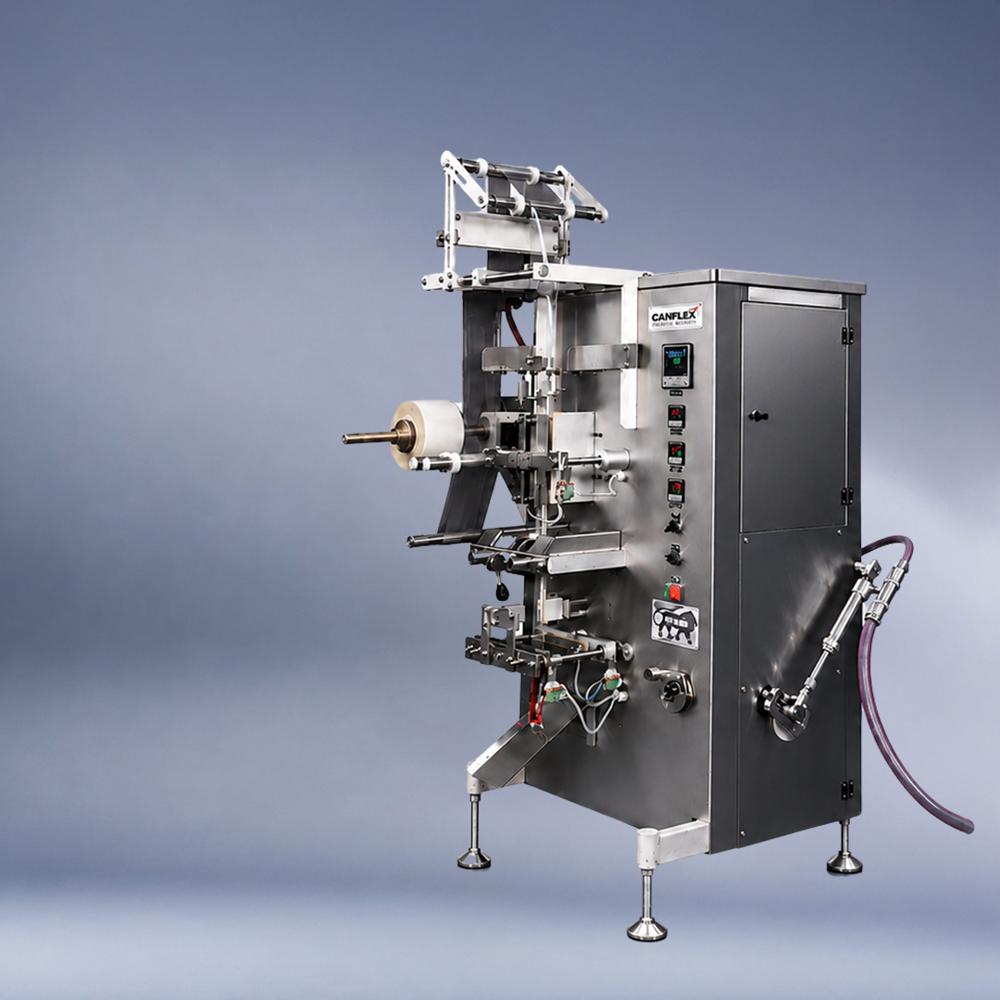

SHAMPOO POUCH PACKING MACHINE Price : 250000.00 INR/Piece Minimum Order Quantity : 1 Drive Type : Other Material : Stainless Steel Weight (kg) : 360 Kilograms (kg) Warranty : 1 Year Automatic Grade : Automatic Filling Range : Up to 200ml Color : Silver Capacity : 50 Pcs/min Feature : Highly Efficient, Less Power Consumable, Durable Control System : PLC Control Sealing Type : Heat Sealing Usage : Cosmetic liquids/gels/creams/smampoos Power : 1 kilovolt (kV) Computerized : Yes Dimension (L*W*H) : Height 1500 x Width 950 x Length 1050 Millimeter (mm) Features : Pumpassisted dosing for viscous cosmetics Clean, retailready pouch finish Up to 200ml capacity Fully automatic formfillseal cycle Power Supply : Single Phase Application : Shampoo, body wash, liquid soap, cosmetic liquids Voltage : 220 Volt (v) Type : Packaging Line

Send Inquiry

CANFLEX 500 L Pouch Packing Machine Price : 120000.0 INR/Unit Minimum Order Quantity : 1 Drive Type : Other Material : Stainless Steel Weight (kg) : 400 Kilograms (kg) Warranty : 1 Year Automatic Grade : Automatic Filling Range : Up to 500ml Color : Silver Capacity : 50 Pcs/min Feature : Less Power Consumable, Highly Efficient Control System : PLC Control Sealing Type : Heat Sealing Usage : Mineral Water Plants Packaged Drinking Water Plants Purified Water Plants RO Water Plants Bottled & Pouched Water Manufacturers Community & Commercial Water Treatment Plants Water Filtration Plants Water Refilling & Distribution Businesses Institutional Drinking Water Suppliers Bulk Drinking Water Suppliers Emergency & Relief Water Packaging Operations Event & Outdoor Drinking Water Suppliers Contract Water Packaging Companies PrivateLabel Packaged Water Manufacturers Export Oriented Packaged Water Companies Power : 1.2 kilovolt (kV) Computerized : No Dimension (L*W*H) : 1700(H) x 800(W) x 1200(Depth). Millimeter (mm) Features : Floatbalanced gravity dosing Openbody hygienic design Highspeed continuous operation Available in 500ml and 1000ml fill ranges Power Supply : Single Phase Application : Mineral water, purified drinking water, flavoured water Voltage : 220 Volt (v) Type : Other

Send Inquiry

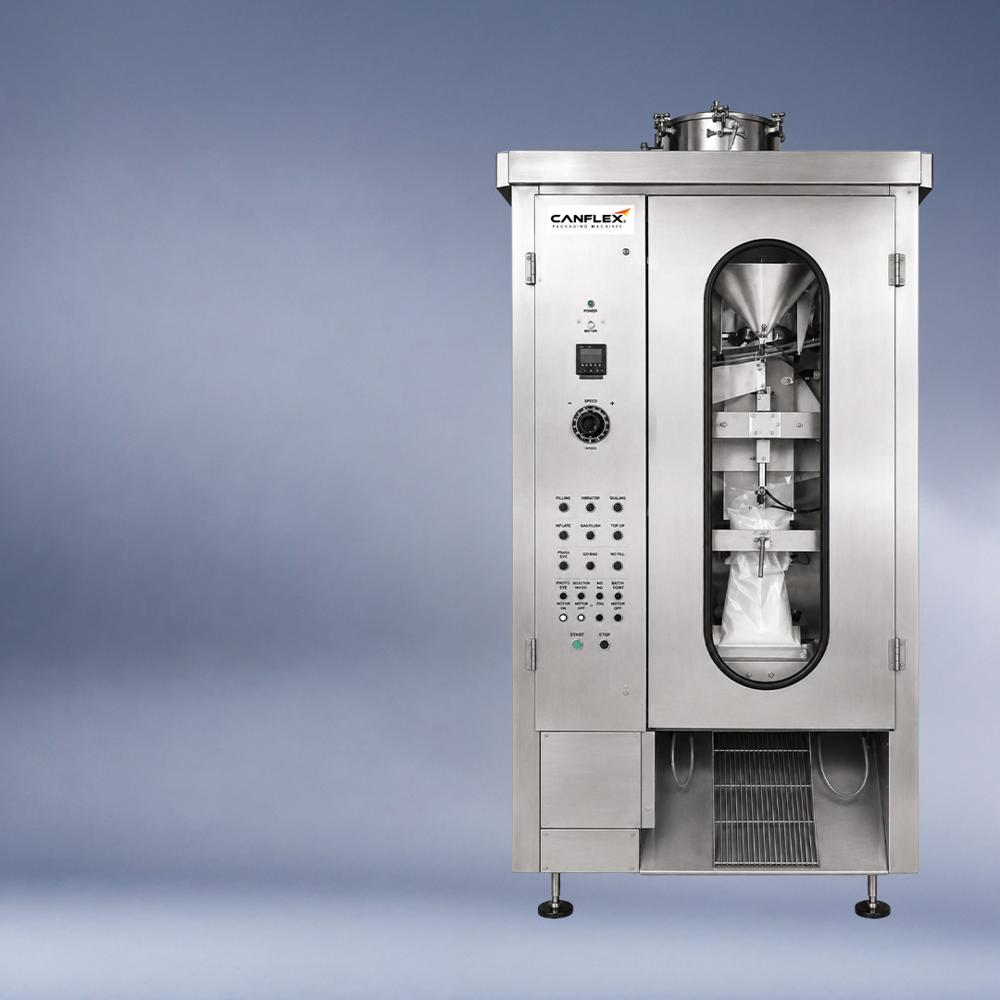

Milk Pouch Packing Machine Price : 300000.0 INR/Unit Minimum Order Quantity : 1 Drive Type : Other Material : Stainless Steel Weight (kg) : 450 Kilograms (kg) Warranty : 1 Year Automatic Grade : Automatic Filling Range : up to 1000ml Color : Silver Capacity : 50 Pcs/min Feature : Highly Efficient, Less Power Consumable Control System : PLC Control Sealing Type : Other Usage : Dairy Industry Beverage Industry Fruit Processing Industry Food Processing Industry Ice Cream Industry Liquid Food Industry FMCG Industry Contract Food Manufacturing Power : 3 Watt (w) Computerized : No Dimension (L*W*H) : 1700(H) x 800(W) x 1200(Depth). Millimeter (mm) Features : Volumetric piston filling Clean, dripfree filling Up to 16g capacity Minimizes product wastage Power Supply : Single phase Application : Fevicol, pickles, sauces, pastes, ketchup Voltage : 220 Volt (v) Type : Packaging Line

Send Inquiry

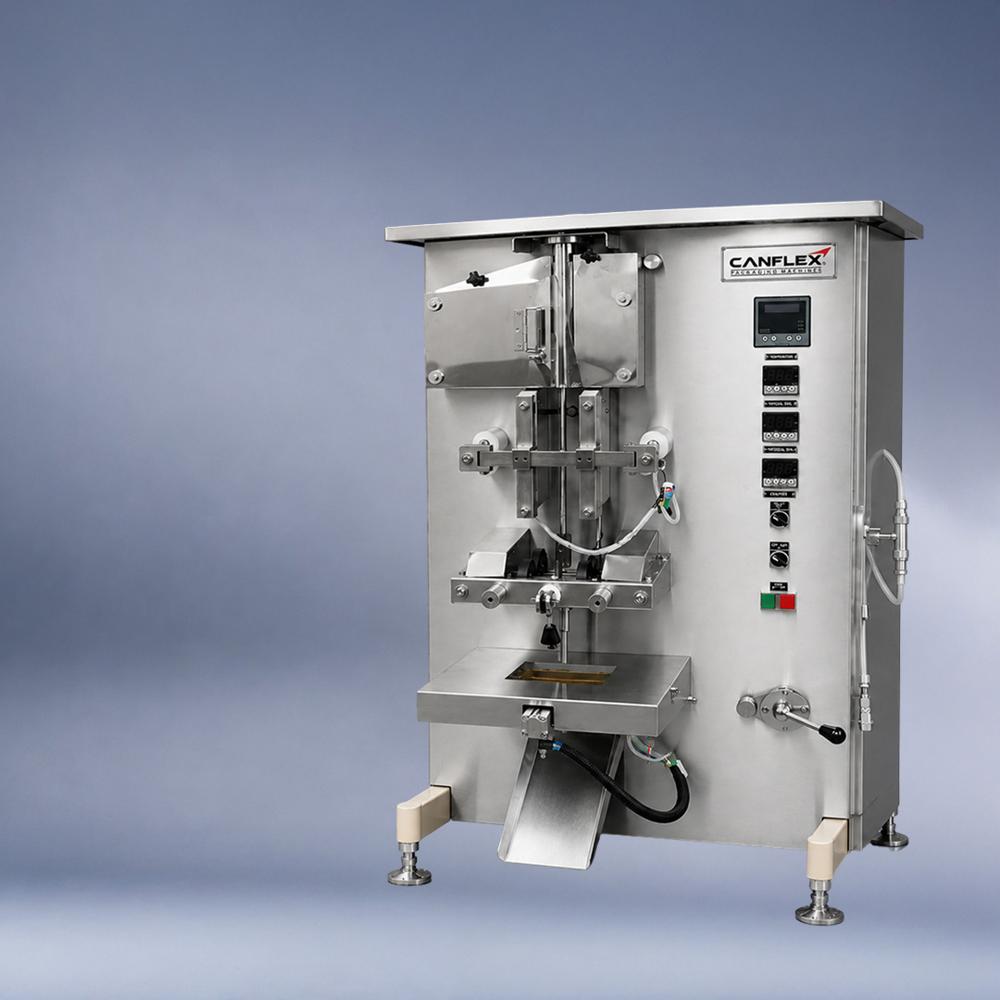

Liquid packaging machinery CANFLEX 200 4S Price : 250000.0 INR/Unit Minimum Order Quantity : 1 Drive Type : Other Material : Stainless Steel Weight (kg) : 360 Kilograms (kg) Warranty : 1 Year Automatic Grade : Automatic Filling Range : Up to 200ml Color : Silver Capacity : 50 Pcs/min Feature : Heavy Duty Machine Control System : PLC Control Sealing Type : Heat Sealing Usage : Liquids, oils, liquor, Water, milk, buttermilk, flavored water, ice candy Power : 1 kilovolt (kV) Computerized : No Dimension (L*W*H) : Height 1500 x Width 950 x Length 1050 Millimeter (mm) Features : Pumpassisted dosing for viscous cosmetics Clean, retailready pouch finish Up to 200ml capacity Fully automatic formfillseal cycle Power Supply : single phase Application : Liquids, oils, liquor Voltage : 220 Volt (v) Type : Packaging Line
