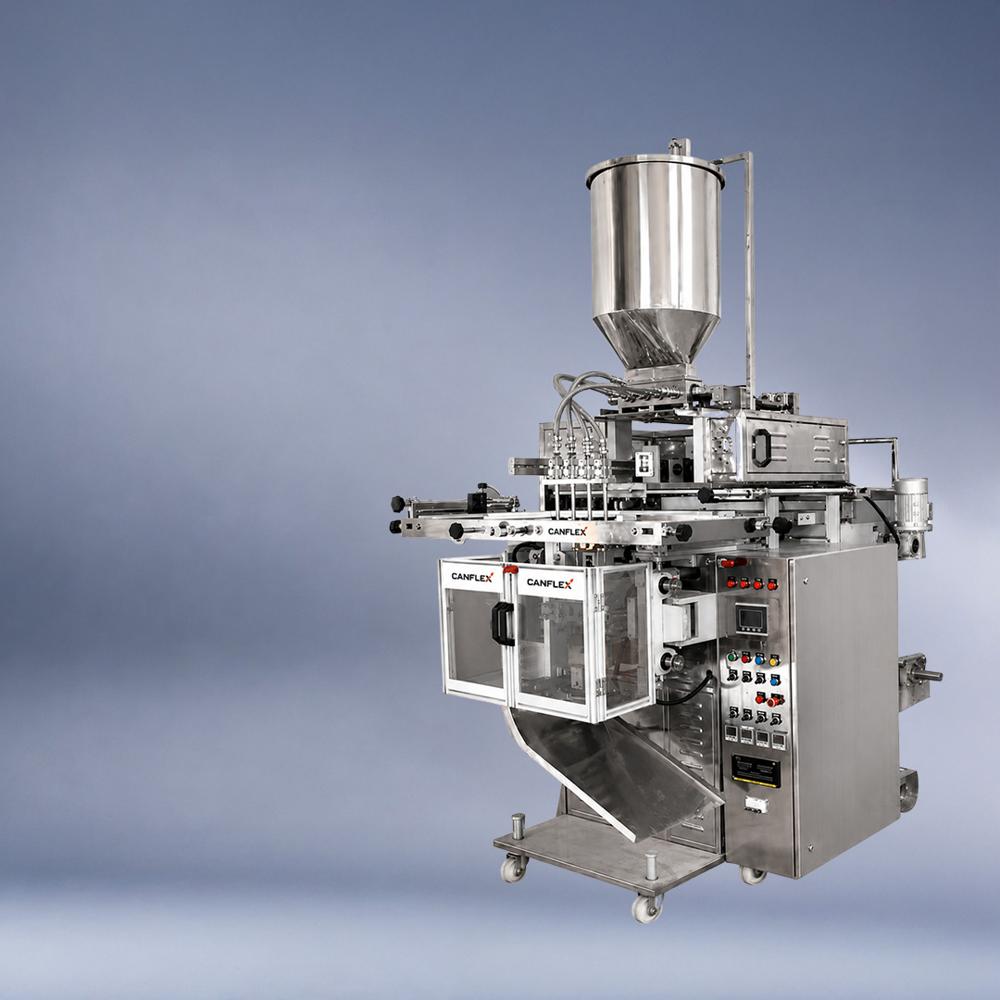

Automatic Multi Track Pouch Packing Machine

Product Description

Fully automatic Form-Fill-Seal machine designed for high-speed paste packaging in laminated film. This 4-track machine features stainless steel covering and product-contact parts for durability and hygiene. Track configuration can be customised to suit film width, with the Canflex Multi-Track available from 600800 mm. Ideal for ginger-garlic paste, sauces, ketchup, jams, adhesives, tamarind paste, and pickles, supporting scalable production.

Applications: Fevicol, pickles, sauces, pastes, ketchup

Features: Volumetric piston filling Clean, drip-free filling Up to 16g capacity Minimizes product wastage

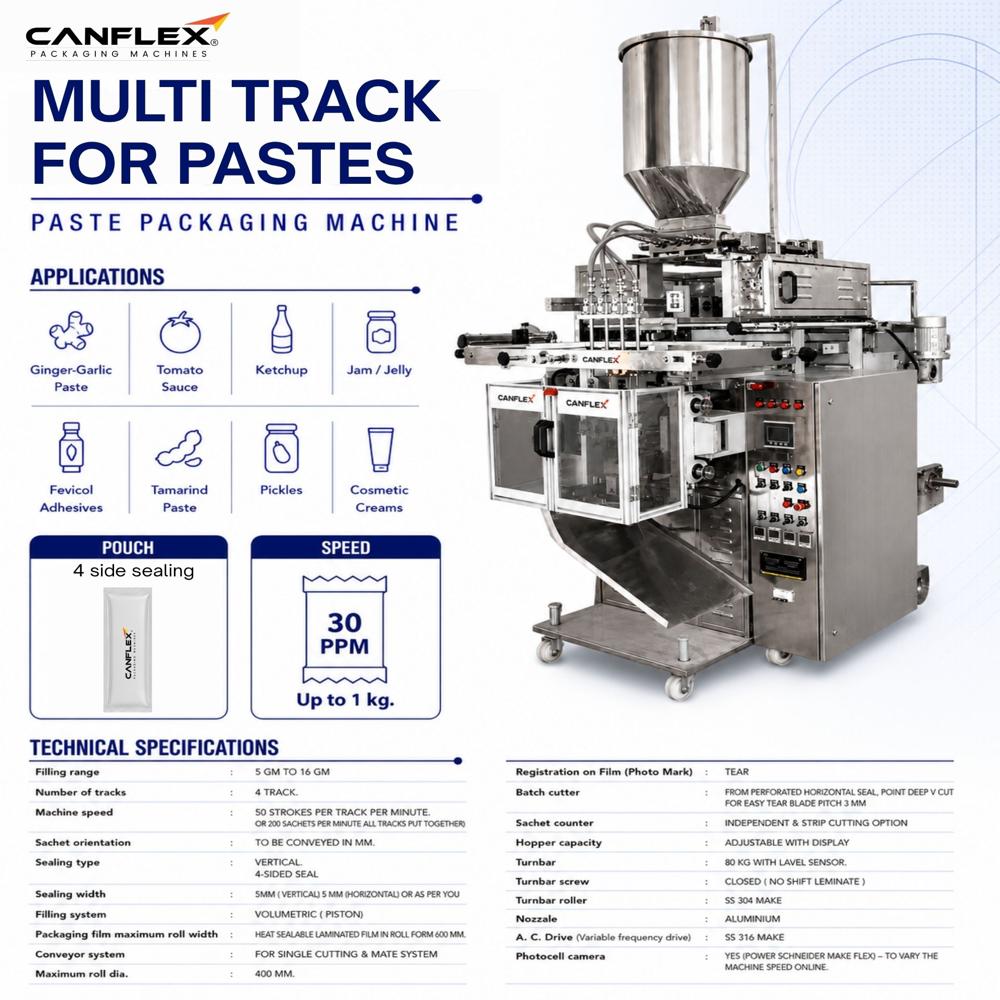

SPECIFICATIONS:

FILLING RANGE 5 GM TO 16 GM

NUMBER OF TRACKS 4TRACK.

MACHINE SPEED: 50 STROKES PER TRACK PER MINUTE.

OR 200 SACHETS PER MINUTE ALL TRACKS PUT TOGETHER)

SACHET DIMENSIONS TO BE CONVEYED IN MM.

SACHET ORIENTATION VERTICAL

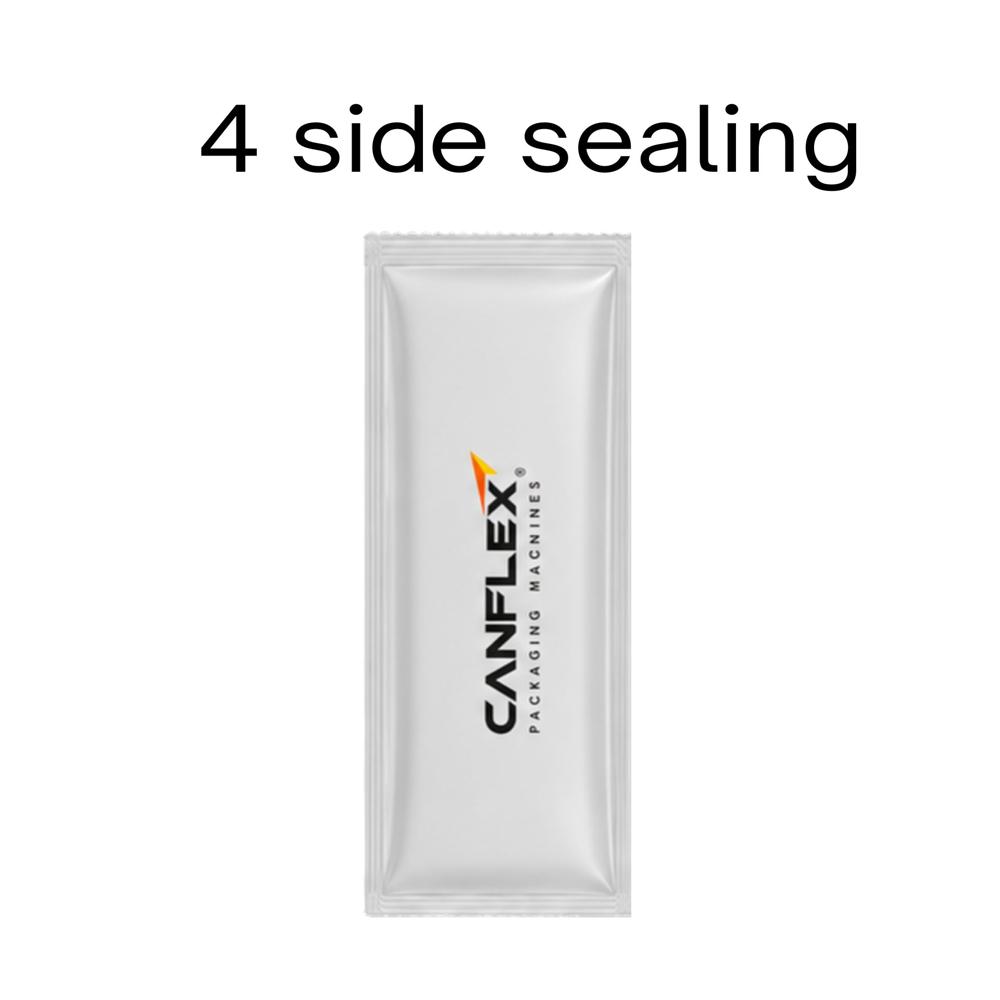

SEALING TYPE 4-SIDED SEAL

SEALING WIDTH 5MM ( VERTICAL) 5 MM (HORIZONTAL) OR AS PER YOU

FILLING SYSTEM VOLUMETRIC ( PISTON )

PACKAGING FILM MAXIMUM ROLL

WIDTH

HEAT SEALABLE LAMINATED FILM IN ROLL FORM 600 MM.

CONVEYOR SYSTEM FOR SINGLE CUTTING & MATE SYSTEM

MAXIMUM ROLL DIA 400 MM.

REGISTRATION ON FILM (PHOTO MARK ) YES

TEAR BATCH CUTTER

FROM PERFORATED HORIZONTAL SEAL, POINT DEEP V CUT FOR EASY

TEAR BLADE PITCH 3 MM

INDEPENDENT & STRIP CUTTING OPTION

SACHET COUNTER ADJUSTABLE WITH DISPLAY

HOPPER CAPACITY 80 Kg WITH LAVEL SENSOR.

TURNBAR CLOSED ( NO SHIFT LEMINATE )

TURNBAR SCREW SS 304 MAKE

TURNBAR ROLLER ALUMINIUME

NOZZALE SS 316 MAKE

DRIVE) MACHINE SPEED ONLINE.

PHOTOCELL CAMERA

ISO STANDARD, SUITABLE TO READ PHOTOCELL; DK 20 MAKE

CABLE ENTRIES ALL ENTRIES FROM PANEL BACK SIDE

TRANSFORMER YES ( 2 NOS ) 220 VOLT CONVERT TO 110 VOLT

BATCH NUMBER HEAT EMMOSSING TYPE (DIZIT COAST EXTRA )

PANEL IN HOUSE POWDER COATED MS

PRESSURE SWITCH IP 100 INDFOSS

SOLID STATE RELAY UNISON

ELECTRICAL COMPONENTS INTERNATIONAL GRADE (CE CERTIFIED)

TEMPERATURE CONTROL PID BASE TEMP CONTROLLER (OMRON)

PNEUMATIC COMPONENTS SMC MAKE.

CONTACT PART S.S. 316

MACHINE COVERING S.S. 304 L

POWER 7K/W

A. C. DRIVE (VARIABLE FREQUENCY DRIVE) YES (POWER SCHNEIDER MAKE FLEX) TO VARY THE MACHINE SPEED ONLINE.

MAIN ELECTRICAL MOTORS CROMPTON

FILLING SLIDE SYSTEM

SEALING DOUBLE SEALER SYSTEM (100% LEAKAGE PROOF )

HEATER SAME VERTICAL & HORIZONTAL

BASE 20 MM PLATE

BODY 20 MM PLATE FRONT

BODY SUPPORT WITH STAND

COVERING SS 304 MAKE.

MACHINE DIMENSON W*L*H ( 1600MM *2000MM*2700MM )

MACHINE WEIGHT APPROX. 1650.00 KGS

SPARES WITH MACHINE NYLON PAD HAMMER 1 Nos.

BOTTOM HEATER 2 Nos.

PERFORATION BLADE 2 Nos.

ALLEN KEY SET 1 SET

Compressed Air required 2 CFM @ 6Kg/cm sq.
