Milk Pouch Packing Machine
300000.0 INR/Unit
Product Details:
- Filling Range up to 1000ml
- Features Volumetric piston filling Clean, drip-free filling Up to 16g capacity Minimizes product wastage
- Usage Dairy Industry Beverage Industry Fruit Processing Industry Food Processing Industry Ice Cream Industry Liquid Food Industry FMCG Industry Contract Food Manufacturing
- Application Fevicol, pickles, sauces, pastes, ketchup
- Power Supply Single phase
- Type Packaging Line
- Material Stainless Steel
- Click to view more
X
Milk Pouch Packing Machine Price And Quantity
- 300000.0 INR/Unit
- 1 Unit
Milk Pouch Packing Machine Product Specifications
- Heat Sealing
- Packaging Line
- 3 Watt (w)
- Silver
- Volumetric piston filling Clean, drip-free filling Up to 16g capacity Minimizes product wastage
- PLC Control
- Automatic
- up to 1000ml
- Fevicol, pickles, sauces, pastes, ketchup
- No
- 1700(H) x 800(W) x 1200(Depth). Millimeter (mm)
- Stainless Steel
- 50 Pcs/min
- 220 Volt (v)
- Dairy Industry Beverage Industry Fruit Processing Industry Food Processing Industry Ice Cream Industry Liquid Food Industry FMCG Industry Contract Food Manufacturing
- Other
- 450 Kilograms (kg)
- 1 Year
- Highly Efficient, Less Power Consumable
- Single phase
Milk Pouch Packing Machine Trade Information
- Telangana, India
- 30 Unit Per Month
- 30 Days
- All India
- Trade marked, ISO certififed, Member of Federation of Indian Export Organisation
Product Description

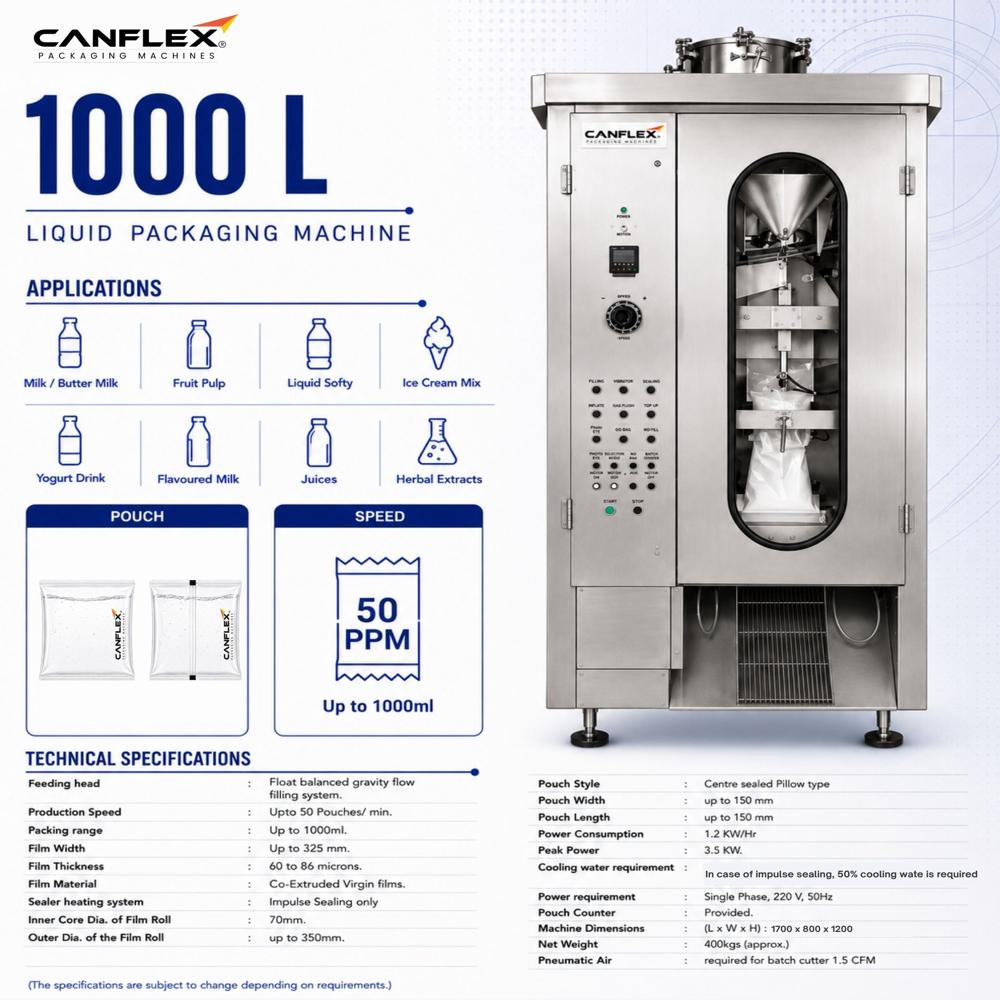

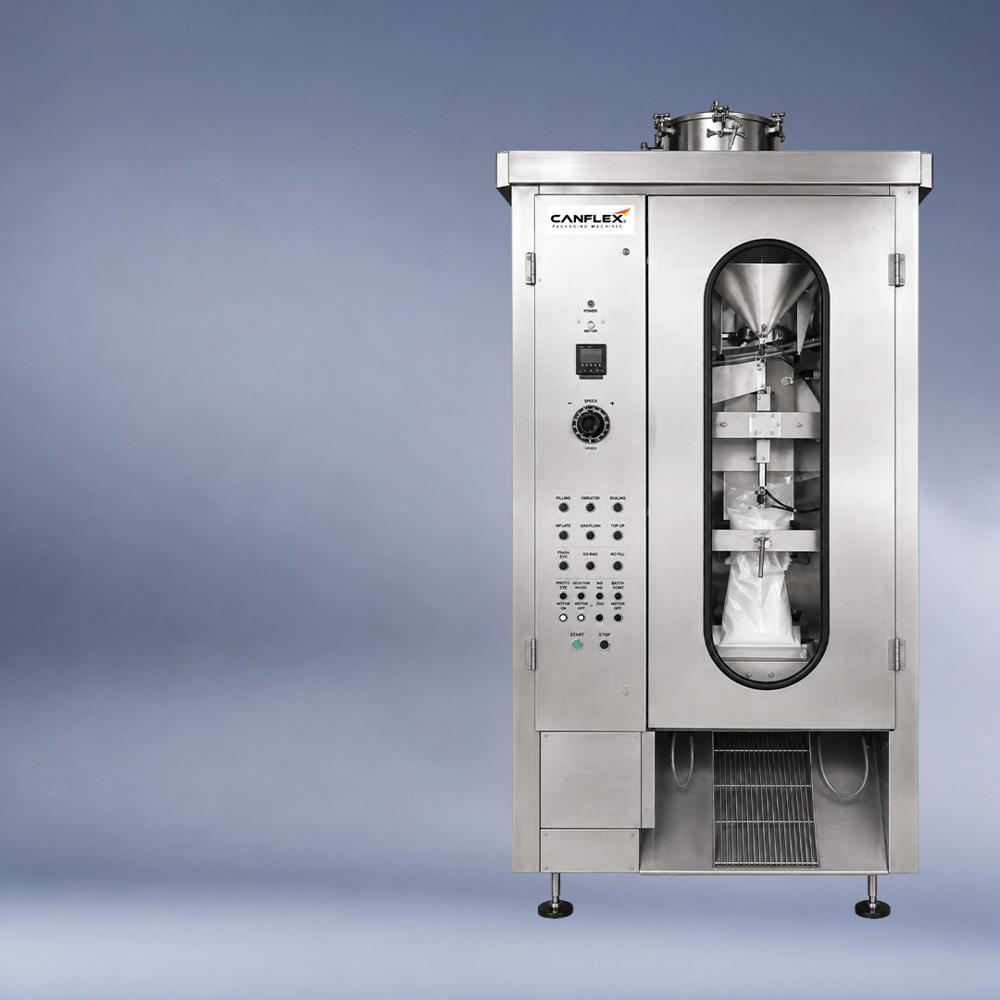

The Canflex 1000 L is a fully automatic, mechanically operated VFFS machine built for larger pouch formats up to 1000 ml.Single head open body fully automatic Mechanically operated vertical pouch form fill & seal machine to pack all free flowing liquids such as milk/ butter milk/ fruit pulp/ liquid softy ice cream mix with float balanced gravity flow filling system.
Applications: Milk, fruit juices, fruit pulps, syrup
Features: Float-balanced gravity dosing Gentle handling of delicate liquids Up to 1000ml capacity dairy products milk buttermilk
SPECIFICATIONS:
Feeding head Float balanced gravity flow filling system
Production Speed uptp 50 Pouches
Packing range up to 1000ml
Film Width Up to 325 mm
Film Thickness 60 to 80 microns
Film Material Co-Extruded Virgin films
Sealer heating system Impulse Sealing only
Inner Core Dia. of Film Roll 70mm.
Outer Dia. of the film Roll up to 350mm.

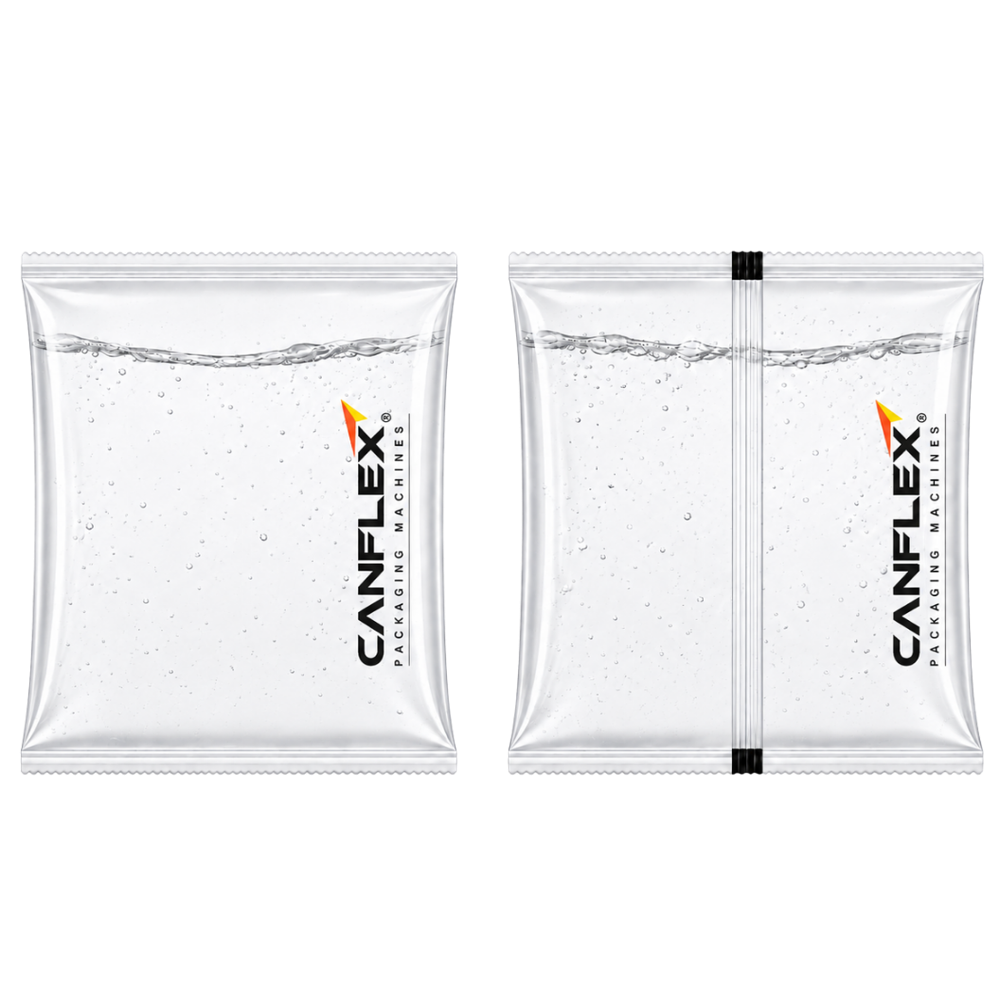

Pouch Style Centre sealed Pillow type
Pouch Width up to 150 mm
Pouch Length 160 mm
Power Consumption 1.2 KW/Hr.
Peak Power 3.5 KW.
Cooling water requirement
In case of impulse sealing, 50% cooling water is required.
Power requirement Single Phase, 220 V, 50Hz
Pouch Counter Provided
Machine Dimensions 1700(H) x 800(W) x 1200(Depth)mm
Net Weight 450kgs (approx.)
Pneumatic Air : required for batch
cutter 1.5 CFM
